J.W. Winco

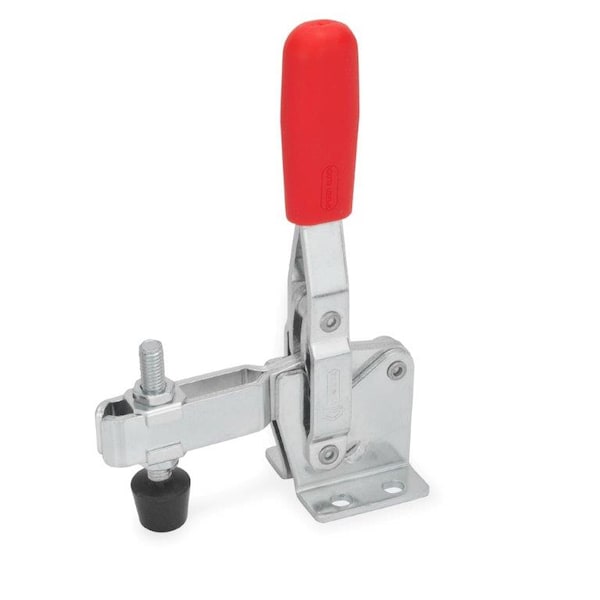

GN810-75-C Vertical Toggle Clamp Steel
Mfr # 810-75-C
Zoro # G4709987
product price: $21.69
/ea
$21.69
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Thread Size M5
- Overall Length 2.62 in
- Overall Height 3.86 in
- Finish Zinc plated
- Type U-bar, washers, spindle
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand J.W. Winco
- MFR # 810-75-C
- Zoro # G4709987
- Country of Origin Italy
- Category Fixture Clamps
Dimensions
| Thread Size | M5 |
| Overall Length | 2.62 in |
| Overall Height | 3.86 in |
| Plate Length | 1.14 in |
| U-Bar Arm Length | 1.24 in |
| Plate Width | 1.34 in |
Details
| Finish | Zinc plated |
| Type | U-bar, washers, spindle |
| Spindle Material | Steel |
| Clamp Material | Steel |
| Holding Force | 750 N |
| Grip Material | Plastic |
| Mounting Distance | 0.94 in to 0.94 in, 0.59 in to 0.63 in |
Description
GN 810 vertical acting toggle clamps work according to the toggle principle: lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position. Vertical acting toggle clamps in the U-bar version with two flanged washers (Type A) can accommodate an application specific clamping screw. A spindle assembly with neoprene rubber tip is also included for Type C. Type E version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component.
