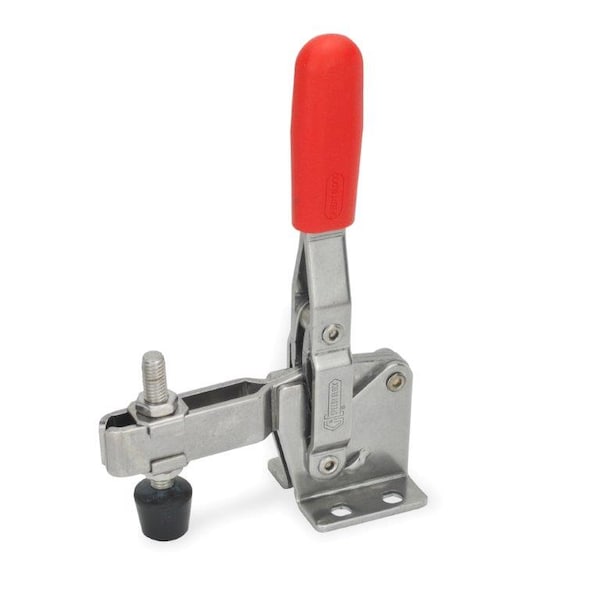

GN810-75-C-NI Vertical Toggle Clamp
Mfr # 810-75-C-NI
Zoro # G4705717
$34.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Thread Size M5
- Overall Height 3.86 in
- Overall Length 2.62 in
- Finish Matte
- Plate Length 1.14 in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand J.W. Winco
- MFR # 810-75-C-NI
- Zoro # G4705717
- Country of Origin Italy
- Category Fixture Clamps
Dimensions
Thread Size | M5 |
Overall Height | 3.86 in |
Overall Length | 2.62 in |
Plate Length | 1.14 in |
Plate Width | 1.34 in |
U-Bar Arm Length | 1.24 in |
Details
Finish | Matte |
Holding Force | 750 N |
Mounting Distance | 0.94 in; 0.59 in to 0.63 in |
Spindle Material | Stainless Steel |
Type | U-bar, washers, spindle |
Clamp Material | Stainless Steel |
Grip Material | Plastic |
Description
GN 810 vertical acting toggle clamps work according to the toggle principle: lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position. Vertical acting toggle clamps in the U-bar version with two flanged washers (Type A) can accommodate an application specific clamping screw. A spindle assembly with neoprene rubber tip is also included for Type C. Type E version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component.
