J.W. Winco

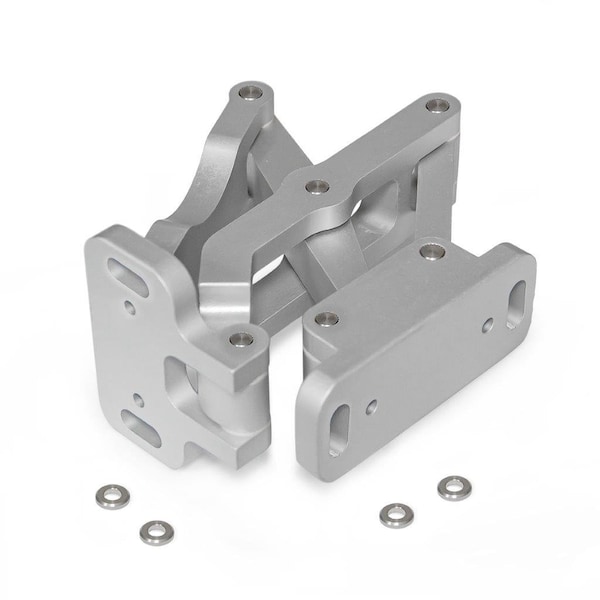

Gn7247-Al-75-El Multiple-Joint Hinge
Mfr # 7247-AL-75-EL
Zoro # G511289212
product price: $354.99
/ea
Free Shipping & Returns
$354.99
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Finish Anodized finish, natural color
- Features Temperature resistant from -40 °F to +194 °F (-40 °C to +90 °C)
- Width 117.5mm
- Material Body - Aluminum, Hinge pins - Stainless steel 304
- Primary Application Multiple-joint hinges GN 7247 are installed on the inside of flaps, hatches and doors to save space and ensure protection against vandalism. The hinge has a maximum opening angle of 180°, which provides optimal accessibility and avoids the blocking of escape routes by open doors, for example.
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand J.W. Winco
- MFR # 7247-AL-75-EL
- Zoro # G511289212
- Country of Origin Germany
- Category Toolholder Accessories
Dimensions
| Width | 117.5mm |
| Length | 96.7mm |
| Bore Dia. | 6.5 mm |
Details
| Finish | Anodized finish, natural color |
| Features | Temperature resistant from -40 °F to +194 °F (-40 °C to +90 °C) |
| Material | Body - Aluminum, Hinge pins - Stainless steel 304 |
| Primary Application | Multiple-joint hinges GN 7247 are installed on the inside of flaps, hatches and doors to save space and ensure protection against vandalism. The hinge has a maximum opening angle of 180°, which provides optimal accessibility and avoids the blocking of escape routes by open doors, for example. |
| Mounting Distance | 61 mm |
