Shop All Fiber Optic Cable
Jonard Tools

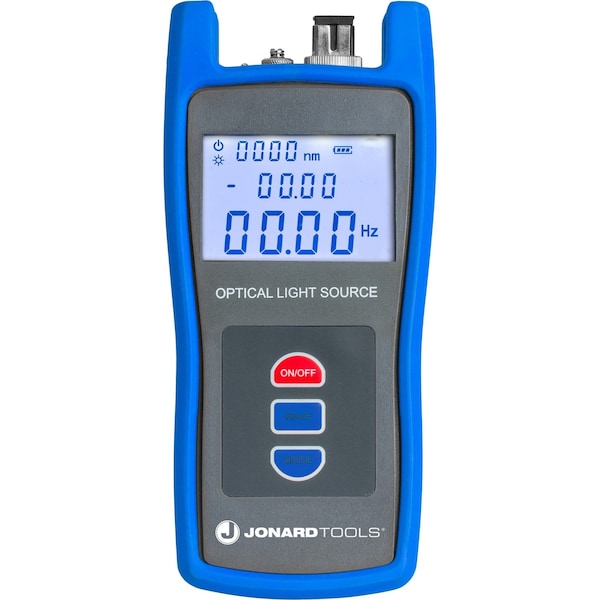

Optical Light Source, FC/LC/SC Adapter

product price: $555.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • For Use With UPC/PC FC Fiber Connectors, UPC/PC LC Fiber Connectors, UPC/PC SC Fiber Connectors
  • Features Flush Button Design, Shatter-Resistant Sleeve
  • Application Light Source For Multimode Or Single Mode Fiber Measurements
  • Adapter Type FC, LC, SC
  • Includes (2) Cleaning Swabs, Fiber Optic Light Source, Storage Pouch
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Length 2.5 Inch
Width 5.25 Inch
Height 9.75 Inch
Spectral Width 10 nm
Wavelengths (nm) 1310, 1550
Battery Size AA

Details

Item Optical Light Source
For Use With UPC/PC FC Fiber Connectors, UPC/PC LC Fiber Connectors, UPC/PC SC Fiber Connectors
Features Flush Button Design, Shatter-Resistant Sleeve
Application Light Source For Multimode Or Single Mode Fiber Measurements
Adapter Type FC, LC, SC
Includes (2) Cleaning Swabs, Fiber Optic Light Source, Storage Pouch
Product Type Stabilized Light Source
Typical Output Power -7 dBm
Operating Temperature -10 ± 60°C
Modulation Frequencies CW / 270 Hz / 1 kHz / 2 kHz
Battery Type (3) AA 1.5V alkaline batteries
Connector Types 1.25 mm LC and 2.5 mm FC/SC
Storage Temperature -25 ± 70°C
Output Stability ± 0.05 dB / 15 min or ± 0.1 dB / 8 hr
Number of Batteries Required 3
Backlit Digital Display Yes
Adapters Included FC, LC, SC
Includes Batteries Yes

Description

Optical Light Source, Application Light Source For Multimode Or Single Mode Fiber Measurements, For Use With UPC/PC FC Fiber Connectors, UPC/PC LC Fiber Connectors, UPC/PC SC Fiber Connectors, Features Backlit LCD Screen, Flush Button Design, Four Different Modulation Outputs, Highly Stable Output Power and Wavelengths, Shatter-Resistant Sleeve, Adapter Type FC, LC, SC, Includes (2) Cleaning Swabs, (3) AA Batteries, FC Adapter, Fiber Optic Light Source, LC Adapter, SC Adapter, Storage Pouch
