Shop All Wire Wrap Tool Accessories
Jonard Tools

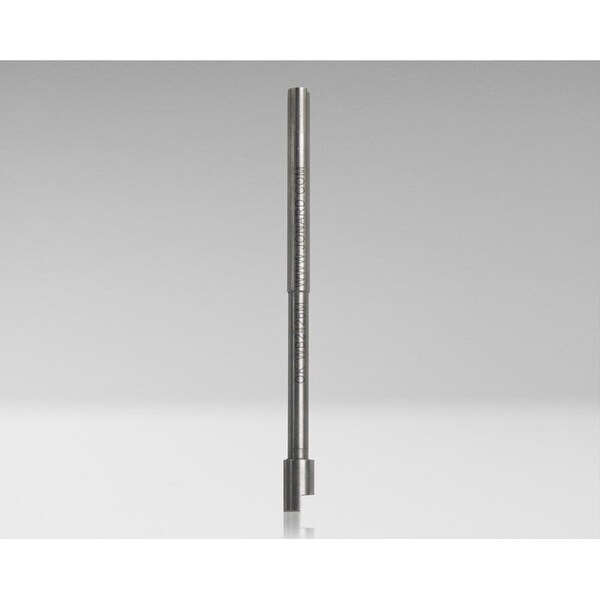

Coiltite Bit
Mfr # WB2426M
Zoro # G9473586
product price: $63.95
/ea
$63.95
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Type Modified
- Wire Gauge 24 to 26 AWG
- Max. Insulation Dia. (In.) 0.046 in
- Effective Radius (In.) 0.118 in
- Min. Terminal Diagonal (In.) 0.046 in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Jonard Tools
- MFR # WB2426M
- Zoro # G9473586
- UPC # 811490013216
- Country of Origin China
- Category Wire Wrap Tool Accessories
Dimensions
Max. Insulation Dia. (In.) | 0.046 in |
Effective Radius (In.) | 0.118 in |
Wrapping Terminal Hole Depth (In.) | 0.046 in |
Wrapping Terminal Hole Dia. (In.) | 0.046 in |
Width | 2.13 inch |
Length | 0.3 in |
Height (in) | 6-1/2 in |
Wrap Post Size | 0.045 in |
Details
Type | Modified |
Wire Gauge | 24 to 26 AWG |
Min. Terminal Diagonal (In.) | 0.046 in |
Max. Terminal Diagonal (In.) | 0.046 in |
Wrap Function | Wrap |
Description
Fully compatible with any make or model of wire wrapping tools, this 3" modified wire wrapping bit is perfect for wrapping 24-26 AWG wire around binding posts when used in conjunction with a wire wrapping tool.Provides one and a half turns of insulation per wire wrap, increasing the mechanical stability the wrapRecommended for use on 0.025" (0.63 mm) square terminals with 0.100" (2.54 mm) center-to-center of the pinsCompatible Wrap Sleeve Part #: P2224 and P2224INS
