Johnson Controls

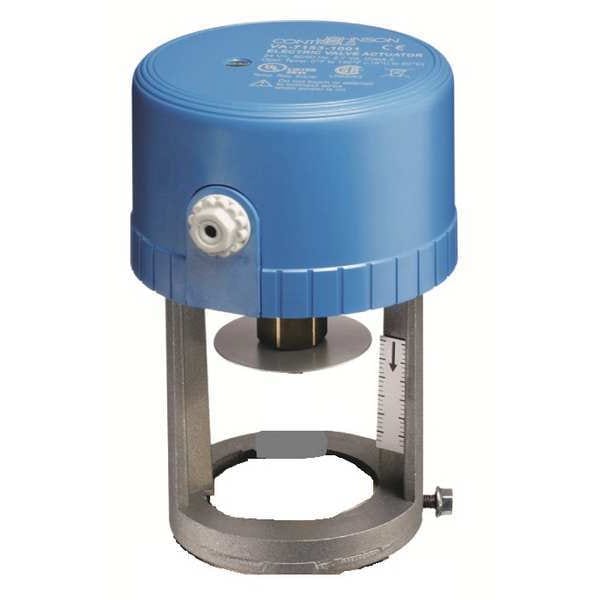

Elec Act, 90 in.-lb., Floating, 24VAC

product price: $311.15
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 24V AC
  • Signal Type Floating
  • Torque 90 in-lb
  • Cycle Time 70 sec
  • Ambient Temp. Range To 140 Degrees F
See all product information

Product Information

Dimensions

Depth 3 27/32 in
Width 3 27/32 in
Height 6 1/16 in
Overall Height 6 1/16 in
Overall Width 3 7/8 in
Overall Depth 3 7/8 in

Details

Item Electric Globe Valve Actuator
Voltage 24V AC
Signal Type Floating
Torque 90 in-lb
Cycle Time 70 sec
Ambient Temp. Range To 140 Degrees F
For Use With Globe Valves
Power Consumption 2.7 VA
Electrical Connections Screw Terminals
Includes Valve Linkage
Stroke Deg. 25/32
Type of Actuator Non-Spring Return
Standards ANSI B16.15, Class 250, CRN 0C22556.5
Application Air Conditioning, Heating, Ventilation
Product Type Electric Globe Valve Actuator
Return Action Non-Spring Return
Mounting Style Direct Mount
Compatible Valve Body Pattern Two-Way
Compatible Series VG7000
NEMA Rating Not Rated
Operating Temperature - Maximum 140 Degrees F
Frequency 50/60 Hz
Compatible Brand Johnson Controls
Electrical Connection Type Screw Terminals
Operating Temperature - Minimum 0 Degrees F
Control Signal Floating Point, On/Off
Housing Material Bronze

Description

Electric Globe Valve Actuator, Application Air Conditioning, Heating, Ventilation, Compatible Brand Johnson Controls, Compatible Series VG7000, Compatible Valve Body Pattern Two-Way, Control Signal Floating Point, On/Off, Cycle Time 70 sec, Electrical Connection Type Screw Terminals, Frequency 50/60 Hz, Housing Material Bronze, Includes Valve Linkage, Mounting Style Direct Mount, NEMA Rating Not Rated, Operating Temperature - Maximum 140 Degrees F, Operating Temperature - Minimum 0 Degrees F
