Compact Rigging Pulley (13mm Rope Max)

product price: $179.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Working Load Limit 1,900 lb (8.4 kN)
  • Sheave Width 3 in.
  • Sheeve Material Aluminum/Steel
  • Length 5 in.
  • Width 3 in.
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Sheave Width 3 in.
Length 5 in.
Width 3 in.
Height 2

Details

Working Load Limit 1,900 lb (8.4 kN)
Sheeve Material Aluminum/Steel
Includes Easy to open fixed-pin attachment
Material Aluminum/Steel
Features Colored aluminum-alloy cheek plates & sheaves to easily identify max rope sizes, safe working-load limits, max breaking strengths and sheave sizes. Made with stainless-steel axles.
For Use With Lower sheave can hold up to 1/2 in. diameter rope. Top sheave can hold up to 5/8 in. diameter sling.
Application Lightweight rigging applications
Weight 1.4 lbs.
Color Green/Grey
Working Load limit 1900 lbs (8.4 kN)

Description

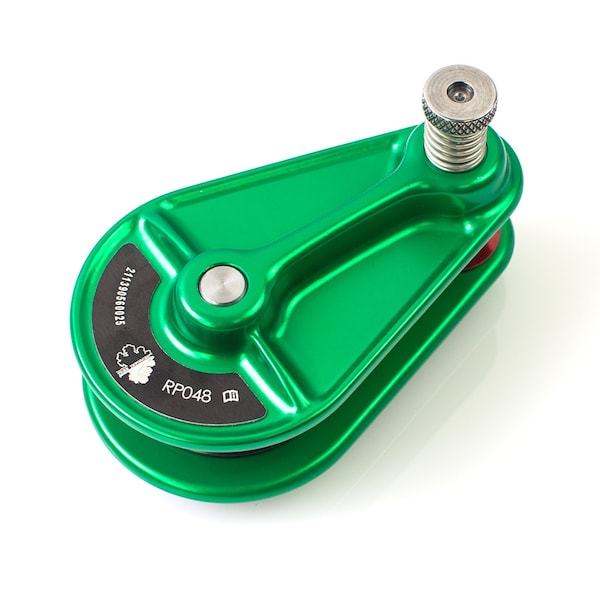

The RP048 Compact Rigging Block w/ Spring Pin. The latest addition to ISC's world-leading range of rigging pulleys is the new "Compact Block", suitable for lightweight rigging applications. At approximately half the size of the standard small rigging pulley and weighing in at only 490g (1lb), the new compact rigging pulley offers a highly impressive strength to weight ratio, with an 85kN (19,000 lbs.) MBS and WLL of 1,900 lbs. The Pulley plates are made from hot forged Aluminum and it is this manufacturing process which allows such a compact pulley to boast such great strength and dynamic load bearing capacity. Features:Spring-lock pin, with chamfered head yields quick, easy location and secure lock. Wide, rounded cheek plates protects ropes to minimize wear. Color coded sheaves for quick easy sizing identification.Identifications plates with individually serial numbered make inspection tracking easy.Specifications: Height: 5 in.(125mm), Body Width: 3 in.(76mm), Body Material: Aluminum, Pin Material: Stainless Steel, Weight: 1 lb. (490g) MBS: 19,000 lbs. (85kN), WLL: 1,900 lbs. (8.4 kN), Working Line Capacity: 1/2 in. (13mm), Rigging Sling Size: 5/8 in.(16mm) .

Restrictions

  • This item has been restricted from sale in the following states: AK
