Shop All Electronic Timers
Intermatic

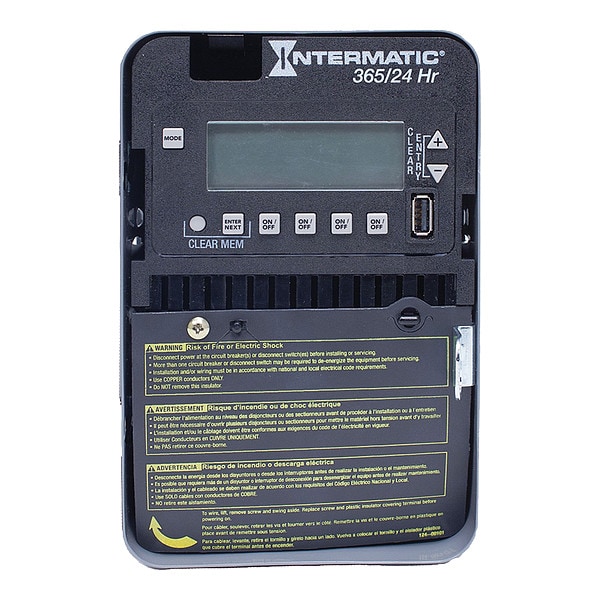

Electronic Timer, 24 hr./365 Days, 30A
Mfr # ET2145C
Zoro # G6137321
Free Shipping & Returns
$362.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Operation Mode 24 hr/365 Days
- Number of Channels 4
- Contact Form SPST
- Voltage 120 to 277V AC
- Amps 30 A
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Intermatic
- MFR # ET2145C
- Zoro # G6137321
- UPC # 078275148055
- Country of Origin Mexico
- Category Electronic Timers
Dimensions
Display Width | 3 in |
Depth | 3 7/16 in |
Height | 7 7/8 in |
Display Height | 1 in |
Width | 5 1/8 in |
Min. Wire Size | #14 AWG |
Max. Wire Size | #8 AWG |
Product Height (in) | 7.875 |
Wire Size Min | #14 AWG |
Knockout Dimensions Bottom | (2) combination 1/2" - 3/4" |
Product Width (in) | 5.125 |
Product Depth (in) | 3.4375 |
Wire Size Max | #8 AWG |
Knockout Dimensions Back | (1) combination 1/2" - 3/4" |
Description
Electronic Timer, Operation Mode 24 hr/365 Days, Number of Channels 4, Contact Form SPST, Voltage 120 to 277V AC, Amps 30 A, HP @ 120V 1, HP @ 240V 2, Events Available - Electronic Timer 96, Available Actions - Electronic Timer On/Off, Pulse, Event Allocation - Electronic Timer 1 On/Off Action = 2 Events, 1 Pulse Action = 1 Event, Pulse Duration 2 sec, Enclosure Metal, Mounting Surface, Number of Poles 2, Min. Time Setting 1 min, Max. Time Setting 24 hr, NEMA Rating 1, Color Gray
