Insize

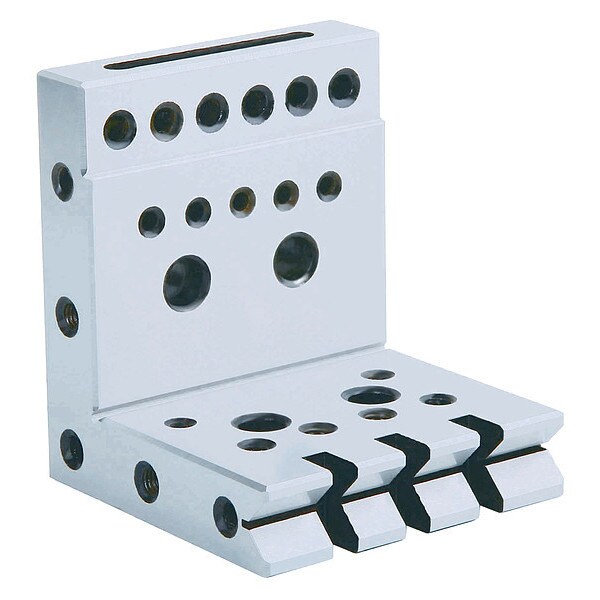

Angle Plate, 3-29/32" W, 4-1/2" H, 25/64" D
Mfr # 6547-E1
Zoro # G6312667
product price: $700.99
/ea
Free Shipping & Returns
$700.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Overall Length 3.9000 in
- Overall Width 3 29/32 in
- Overall Height 4 1/2 in
- Width 3-29/32"
- Construction Steel
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Insize
- MFR # 6547-E1
- Zoro # G6312667
- Country of Origin China
- Category Angle, Pitch, and Slope Locators
Dimensions
Overall Length | 3.9000 in |
Overall Width | 3 29/32 in |
Overall Height | 4 1/2 in |
Width | 3-29/32" |
Depth | 25/64" |
Hole Size | 2" x 1/2" |
Height | 4-1/2" |
Slot Width | 5/16" |
Details
Item | Sine Bar |
Construction | Steel |
Finish | Machined |
Number of Slots | 26 |
Individual or Pair | Individual |
Plate Thickness | 3/32" |
Includes | Case |
Application | Measures Angles in Machine Setups |
Parallelism | 0.00004 in |
Clamping Holes | Yes |
Description
Sine Bar, Parallelism 0.00004 in, Overall Length 3.9000 in
