Ifm

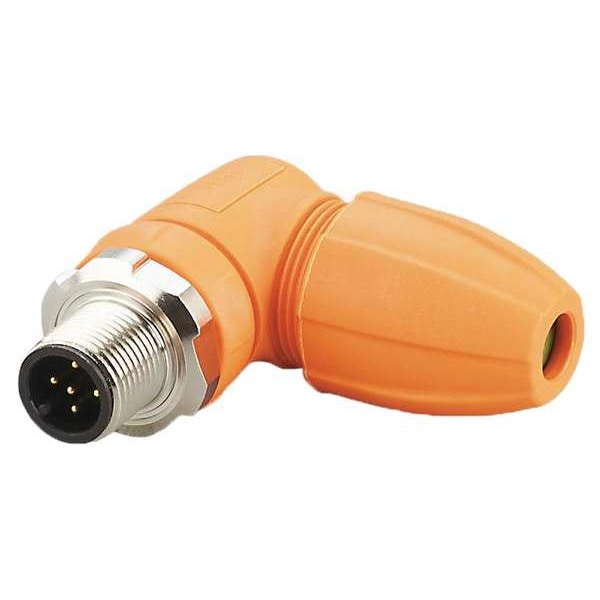

Wireable M12 connector

product price: $22.55
/ea
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Number of Contacts 5 Pin
  • Standards CE, cRUus, EAC
  • Application DC Power, Gigabit Internet, Sensors, Signal
  • Mounting Style Male Thread
  • Locking Style Screw Connection
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Thread Size M12
Cable Outside Diameter 6 mm
Conductor Cross Section Size 1.04 sq mm

Details

Number of Contacts 5 Pin
Item M12 Circular Connector
Standards CE, cRUus, EAC
Application DC Power, Gigabit Internet, Sensors, Signal
Mounting Style Male Thread
Locking Style Screw Connection
IP Rating IP65, IP67, IP68, IP69K
Coding A
Voltage Rating 60V AC, 60V DC
Housing Material Nylon
Connector Body Type Pin
Nominal Current 4 A
Number of Poles 5
Connector Orientation 90 Degrees Angled
Includes Nut Yes
Connection Type Gold-Plated Contacts
Minimum Operating Temperature -13 Degrees F
Temperature Range -13 Degrees F to 194 Degrees F
Maximum Operating Temperature 194 Degrees F

Description

M12 Circular Connector, Mounting Style Male Thread, Application DC Power, Gigabit Internet, Sensors, Signal, Number of Poles 5, Coding A, Mounting Type Front Mounting, Connection Type Gold-Plated Contacts, Thread Size M12, Voltage Rating 60V AC, 60V DC, Nominal Voltage 60V AC, 60V DC, Nominal Current 4 A, Locking Style Screw Connection, Housing Material Nylon, Includes Nut Yes, Connector Body Type Pin, Conductor Cross Section Size 1.04 sq mm, Cable Outside Diameter 6 mm
