Ifm

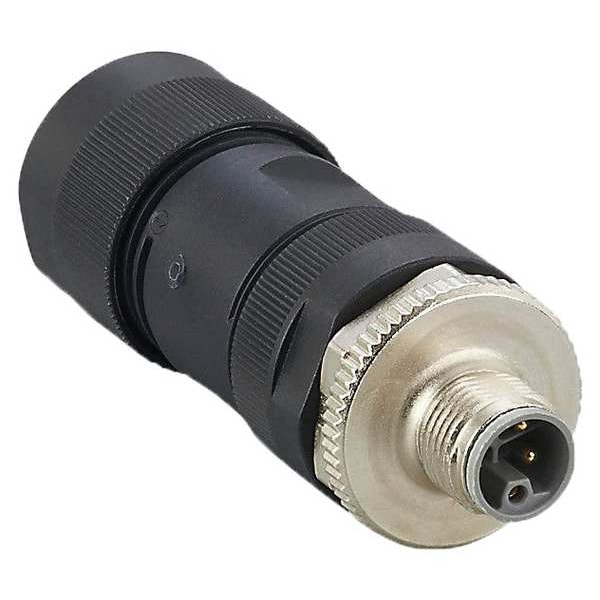

Wireable M12 connector

product price: $31.39
/ea
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Number of Contacts 5 Pin
  • Application Profinet DC Power
  • Mounting Style Male Thread
  • Thread Size M12
  • Conductor Cross Section Size 2.5 sq mm
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Thread Size M12
Conductor Cross Section Size 2.5 sq mm
Cable Outside Diameter 13 mm

Details

Number of Contacts 5 Pin
Application Profinet DC Power
Mounting Style Male Thread
Item M12 Circular Connector
Maximum Operating Temperature 185 Degrees F
Minimum Operating Temperature -40 Degrees F
IP Rating IP67
Coding L
Housing Material Nylon
Locking Style Screw Connection
Connector Orientation Straight
Includes Nut Yes
Connector Body Type Pin
Voltage Rating 63V DC
Connection Type Gold-Plated Contacts
Nominal Current 16 A
Number of Poles 5
Temperature Range -40 Degrees F to 185 Degrees F

Description

M12 Circular Connector, Mounting Style Male Thread, Application Profinet DC Power, Number of Poles 5, Coding L, Mounting Type Front Mounting, Connection Type Gold-Plated Contacts, Thread Size M12, Voltage Rating 63V DC, Nominal Voltage 63V DC, Nominal Current 16 A, Locking Style Screw Connection, Housing Material Nylon, Includes Nut Yes, Connector Body Type Pin, Conductor Cross Section Size 2.5 sq mm, Cable Outside Diameter 13 mm, Connector Orientation Straight
