Shop All Programmable Logic Controllers
Icp Das

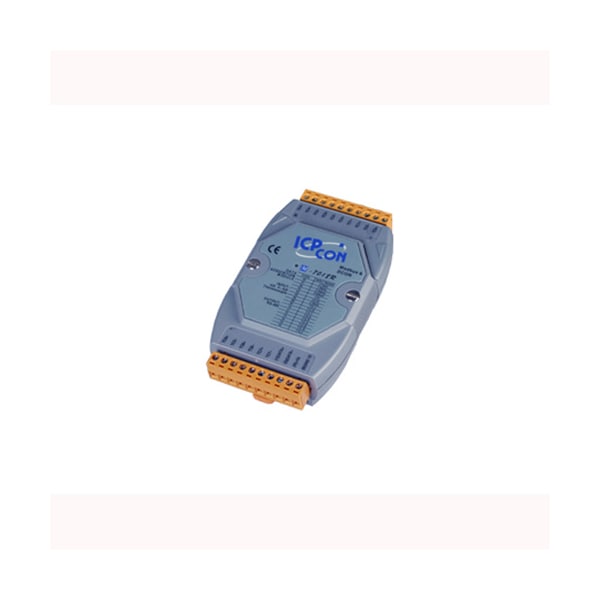

RS-485 Remote I/O Module, M-7018R
Mfr # M-7018R
Zoro # G400491535
product price: $498.99
/ea
Free Shipping & Returns
$498.99
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Sampling Rate 10 Samples/ Second
- Accuracy +/-0.1%
- Operating temperature -25 to 75°C
- Open Thermocouple Detection Yes
- Humidity 5 to 95% RH, non-condensing
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Icp Das
- MFR # M-7018R
- Zoro # G400491535
- Country of Origin Taiwan, Province of China
- Category Programmable Logic Controllers
Dimensions
| BandWidth | 15.7 Hz |
Details
| Sampling Rate | 10 Samples/ Second |
| Accuracy | +/-0.1% |
| Operating temperature | -25 to 75°C |
| Open Thermocouple Detection | Yes |
| Humidity | 5 to 95% RH, non-condensing |
| Intra-module Isolation, Field to Logic | 3000 VDC |
| Baud Rate | 1200 ~ 115200bps |
| Over voltage Protection | 240Vrms |
| Input Type | +/-15mV, +/-50mV, +/-100mV, +/-500mV, +/-1V, +/-2.5V; +/-20mA (requires optional external 125 ohm resistor); Thermocouple Type J, K, T, E, R, S, B, N, C,L,M |
| Input | +10 to +30 Vdc |
| Interface Format | N, 8, 1 |
| Input Impedance | 1M Ohms |
| Resolution | 16-bit |
| Storage temperature | -40 to 85°C |
| 4KV ESD Protection | Yes, Contact for each terminal. |
| Input Channels | 8 differential |
| Interface | RS-485 |
| Power Consumption | 1.0W |
| Common Mode Rejection | 86dB min. |
| Normal Mode Rejection | 100dB |
| Span drift | 25ppm/°C |
| Support Modbus and DCON Protocol | Yes |
| Zero Drift | +/-10uV/°C |
Description
Modbus Version, 8 Thermocouple Inputs with high Voltage Protection
Restrictions
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
