Shop All Voice & Data Outlets, Boxes, Faceplates
Icc

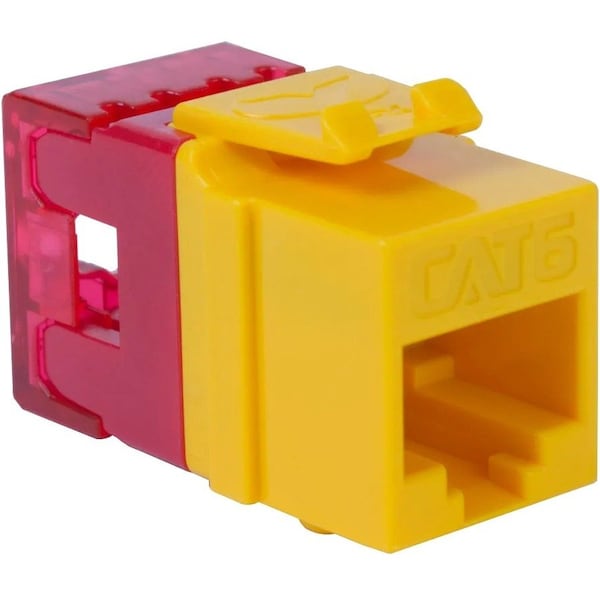

MODULE, CAT 6, HD, 25PK, YELLOW
Mfr # IC107F6CYL
Zoro # G509850998
Free Shipping & Returns
$104.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Color Transparent Red, Yellow
- Connector Insulation Displacement Connection (IDC), 8P8C
- Contact Resistance 20 mohms max
- Performance CAT6
- Plug Retention Force 30 lbs min
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Icc
- MFR # IC107F6CYL
- Zoro # G509850998
- UPC # 633758093859
- Country of Origin Taiwan, Province of China
- Category Voice & Data Outlets, Boxes, Faceplates
Details
Color | Transparent Red, Yellow |
Connector | Insulation Displacement Connection (IDC), 8P8C |
Contact Resistance | 20 mohms max |
Performance | CAT6 |
Plug Retention Force | 30 lbs min |
Insulation Resistance | 500 mohms min |
Jack Style | HD |
Housing | ABS, UL 94V-0 |
Plug and Jack Contact Force | 100 grams min |
Plug Insertion Life | 750 cycles min |
Jack Wiring | 50 Micro Inches of Gold over 100 Micro Inches of Nickel |
Termination Cap | PC, UL 94V-0 |
Current rating | 1.5 amps |
Product Type | Keystone Jacks |
Temperature | -40° to 150° F (-40° to 68° C) |
DC Resistance | 0.1-ohm max |
Description
Yellow high Definition Cat 6 Modular Keystone Jack 25 Pack-CAT6 rated connectors provide excellent performance for data networks-PCB technology provides maximum performance and superior signal quality-Enhanced crosstalk cancellation reduces return loss and improves performance-Rejecting noise and unwanted signals-Exceeds ANSI/TIA-568-C.2 Category 6 connecting hardware requirements-Designed with rear split back 110 IDC reducing termination time-Terminate with 110 punch down tool-Reduced rear footprint allows for greater connectivity density-Provides for more port configurations in a smaller area-Includes an integrated TIA-568A/B color wiring diagram-Backward compatible with all lower rated category components-Works with all Work Area Outlets faceplates, inserts, surface mount boxes-Used with Category 6 patch cords-Exceeds ANSI/TIA-568-C requirements for permanent performances-UL 1863 Compliant
