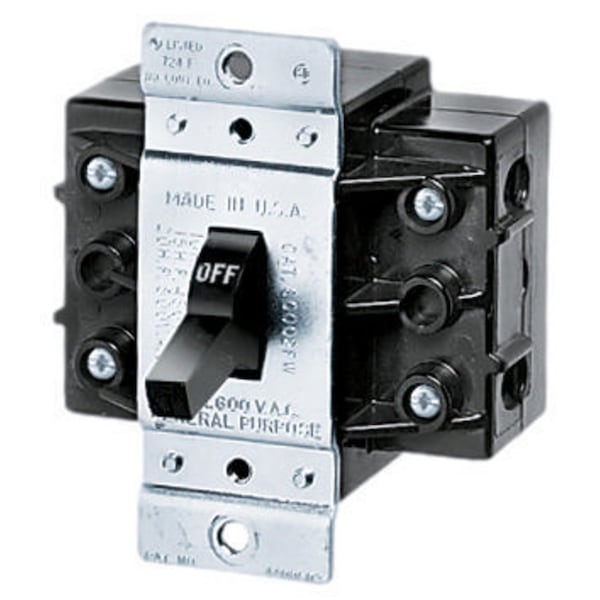

Switches and Lighting Control, Motor Disconnec t, 3-Pole, 60A 600V, Front Wired

Mfr # HBL7863FWD
Zoro # G200701445

$183.30

Free Shipping & Returns

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Phase Three Phase
Material Stainless Steel
Operating Temperatures Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Product Type circuitlock-tn
Circuit-Lock Amperage 60A

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Hubbell Wiring Device-Kellems
MFR # HBL7863FWD
Zoro # G200701445
UPC #
783585202914
Country of Origin United States
Category Disconnect Switches

Dimensions

Display Size

Standard Sized Product

Details

Phase	Three Phase
Material	Stainless Steel
Operating Temperatures	Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Product Type	circuitlock-tn
Circuit-Lock Amperage	60A
Circuit-Lock Wiring Style	Front Wired
Circuit-Lock Enclosure	None
Circuit-Lock Toggle Style	Standard
Wiring Style	Front Wired
Circuit-Lock Item	AC Manual Motor Controllers
Listing and Certifications	UL Listed and CSA Certified
Circuit-Lock Poles	3 Pole
Circuit-Lock Voltage Rating	600V AC Max
Material - Mounting Hardware	Screw Mounting
Current / Amperage Rating	60 A
Voltage Rating Description	600 VAC
Performance	Electrical - Dielectric Voltage - Min. 2,200V AC minimum for 1 minute Electrical - Electrical Life - Min. 6,000 Cycles at rated switch load Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability - UL94HB/VO Environmental - Operating Temperature - Max. 75°C,Min. -40°C continuous w/o impact Mechanical - Mechanical Life - Min. 10,000 minimum cycles Mechanical - Switch Rating - 25 inch pounds Mechanical - Terminal Accommodations - #10 AWG Max Mechanical - Terminal Torque - 20 inch pounds Mechanical - Wire Type - Solid and stranded copper wire only
Connectivity	Pressure Terminal Screws
Dielectric Strength	2,200V AC minimum for 1 minute
Environmental Conditions	Indoor Dry Unless Protected By Additional Means
Item Type	Open Switch
Series	Standard Toggle
OEM Brand Name	Hubbell Wiring Device-Kellems
Operating Cycles	10,000 Cycles Minimum
Horsepower - Maximum	30
Industry Standard(s)	CSA-C22.2 No.14 Industrial Control File LR-46186 UL 508, Industrial Control File #E70402
Operating Temperature	Maximum continuous 75°C and minimum -40°C without Impact
Amperage Rating	60 A
Current Rating	60 A
Number Of Poles	3 Pole
Wattage	36000
Type	Front Wire
Load Capacity	Inductive

Description

Hubbell Wiring Device Kellems, Switches and Lighting Control, MotorDisconnec t, 3-Pole, 60A 600V, Front Wired
