Shop All Locking Receptacles
Hubbell Wiring Device-Kellems

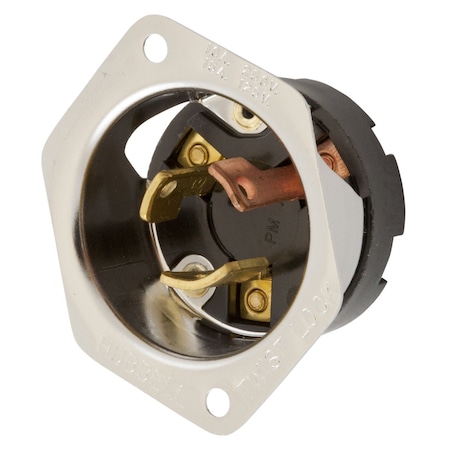

Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 10A 250V/15A 125V, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Steel
Mfr # HBL7556G
Zoro # G000701478
product price: $37.31
/ea
$37.31
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Dimensions 2.31 in x 2.31 in x 1.13 in
- Voltage Rating Description 250/125 V
- Current / Amperage Rating 10/15 A
- Environmental Conditions Indoor Dry Unless Protected By Additional Means
- Current Rating 10A
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Hubbell Wiring Device-Kellems
- MFR # HBL7556G
- Zoro # G000701478
- UPC # 783585237657
- Country of Origin United States
- Category Locking Receptacles
Dimensions
Dimensions | 2.31 in x 2.31 in x 1.13 in |
Display Size | Standard Sized Product |
Details
Voltage Rating Description | 250/125 V |
Current / Amperage Rating | 10/15 A |
Item Type | 10A/15A Grounding Stainless Steel Flanged Inlet |
Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
Current Rating | 10A |
OEM Brand Name | Hubbell Wiring Device-Kellems |
Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
Connectivity | Screw Terminals |
Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
Material - Mounting Hardware | Screw Mounting |
Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #12 AWG solid or stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
Dielectric Strength | Withstands 2,000V minimum |
Insulation | Insulated Body |
Type | Flanged Inlet |
Number Of Wires | 3-Wire |
Amperage Rating | 10/15 A |
Description
Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Flanged Inlet, 10A 250V/15A 125V, 2-Pole 3-Wire Grounding, Non-NEMA,Screw Terminal, Steel
