Shop All Limit Switch Heads
Honeywell

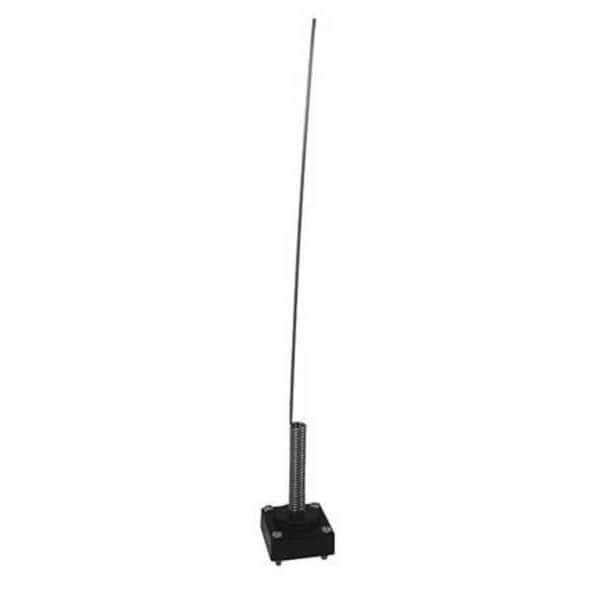

Limit Switch Replacement Rotary Head for LSJ-M Series
Mfr # LSZ1JGM
Zoro # G4628531
Free Shipping & Returns
$140.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Actuator Style Wobble Stick
- Actuator Location Top
- Actuator Length 13 in
- For Use With HDLS LSJ-7M Switches
- NEMA Rating 1, 3, 4, 4X, 6, 6P
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Honeywell
- MFR # LSZ1JGM
- Zoro # G4628531
- Country of Origin United States
- Category Limit Switch Heads
Dimensions
Actuator Length | 13 in |
Details
Item | Limit Switch Head |
Actuator Style | Wobble Stick |
Actuator Location | Top |
For Use With | HDLS LSJ-7M Switches |
NEMA Rating | 1, 3, 4, 4X, 6, 6P |
Movement | CW and CCW |
Standards | RoHS |
IP Rating | Not Rated |
Operating Temp. | 10 Degrees to 200 Degrees F |
Description/Special Features | Spring Wire Head |
Voltage Rating | 600V AC/250V DC |
Travel | Pretravel 4 in |
Compatible with Series | HDLS, LSJ |
Operating Temperature - Minimum | 10 Degrees F |
Operating Temperature - Maximum | 200 Degrees F |
Compatible with Brand | Honeywell |
NEMA Enclosure Rating | 1, 3, 4, 4X, 6, 6P |
Series | LS |
Directional Movement | Omnidirectional |
Description
Limit Switch Head, Actuator Style Wobble Stick, Actuator Location Top, Actuator Length 13 in, Contact Form Not Applicable, Amps Not Applicable, Voltage Rating 600V AC/250V DC, Travel Pretravel 4 in, Movement CW and CCW, Operating Force Not Applicable, Operating Temp. 10 Degrees to 200 Degrees F, NEMA Rating 1, 3, 4, 4X, 6, 6P, IP Rating Not Rated, Standards RoHS, For Use With HDLS LSJ-7M Switches
