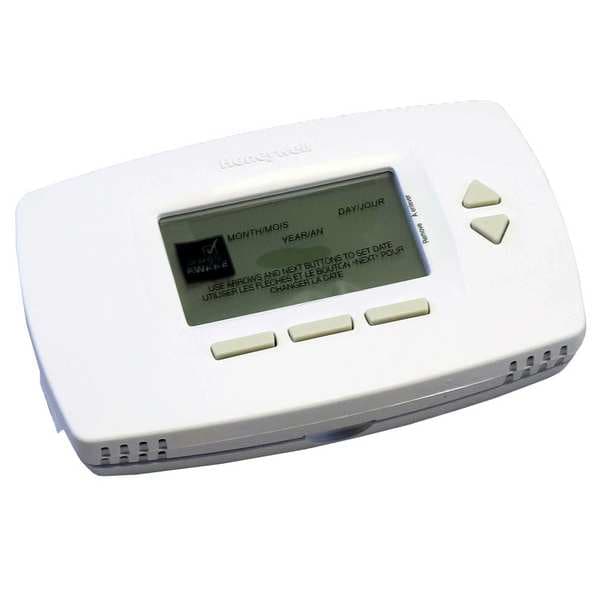

MultiPro 3 Speed Fan Coil

Mfr # TB7100A1000/U
Zoro # G4867270

$204.99

Free Shipping & Returns

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Switch Type 5 Relays
Control Type Push Button
Color White
System Switching Auto-Heat-Cool-Off
Type Low Voltage

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Honeywell Home
MFR # TB7100A1000/U
Zoro # G4867270
UPC #
85267676724
Country of Origin Mexico
Category Air Cleaners and Accessories

Dimensions

Width (In.)	6 in
Height (In.)	3 3/4 in
Depth (In.)	1 3/8 in
Overall Width	6 in
Overall Height	3 3/4 in
Overall Depth	1 3/8 in
Digit Size	Standard

Details

Item	Fan Coil Thermostat
Switch Type	5 Relays
Control Type	Push Button
Color	White
System Switching	Auto-Heat-Cool-Off
Type	Low Voltage
Temp. Settings per Day	1
Fan Switching	Auto-On, Fan Coil, Hi-Med-Low, PTAC, Hi-Low
Number of Relay Inputs	5
Terminal Designations	C, G, G2, G3, O/B, R, Rc, S1, S2, W1, Y
Enclosure Type	Plastic
Voltage	24V
Application	Heat and Cool
Thermostat Control Range	50 Degrees to 90 Degrees F
Mounting Position	Direct Mount On Junction Box
Thermostat Number of Speeds	3
Switch Action	Open/Close on Rise
Thermostat Number of Pipes	2 or 4
Display	LCD
Includes	Pre-Wired For Easy Installation
Rated For Pilot Duty	No
Thermostat Item	Fan Coil Thermostat
Thermostat Heating/Cooling	Heating/Cooling
Special Information	3 Speed Fan Control
Thermostat Switch Type	5 Relays
Temperature Limiting	Yes
Dual Transformer Compatible	No
Humidification Control	No
Housing Color	White
Key Pad Lockout	Yes
Temporary Program Override	Yes
Occupancy Sensor	Compatible with Occupancy Sensor
Display Type	Digital
Dehumidification Control	Yes
Housing Material	Plastic
Minimum Control Temperature	0 Degrees F
Differential Type	Adjustable
Number of Pipes	2 or 4
Application/Stages	Heat and Cool, 2H/1C
Temperature Differential	1.5 Degrees F
Temperature Control Range	0 Degrees to 120 Degrees F
Operating Humidity Range	5 to 90 %
Thermostat Type	Low Voltage
Stages	2H/1C
Sensor Location	Remote
Operating Temperature Range	0 Degrees to 120 Degrees F
Includes Positive Off	Yes
Mounting Direction	Horizontal
Shape	Rectangle
Backlit Screen Color	Green
System/Fan Settings	Auto-Cool-Emergency Heat-Heat-Off, Hi-Med-Low
Backlit Screen	Yes
Maximum Control Temperature	120 Degrees F
Contact Rating	24V AC
Temperature settings per day	1
Temperature Scale	Celsius/Fahrenheit
Changeover Type	Automatic and Manual
Number of Zones	1
System Settings	Auto-Cool-Emergency Heat-Heat-Off
Temperature Readout	Yes
Mounting Direction/Shape	Horizontal
Electrical Connection Type	Screw Terminal
Programming Capability	7-Day
Fan Settings	Hi-Med-Low
Compatible System Type	Fan Coil Unit

Description

Fan Coil Thermostat, Low Voltage, Thermostat Switch Type 5 Relays, Switch Action Open/Close on Rise, Thermostat Control Range 50 Degrees to 90 Degrees F, Differential (Deg. F) -, Thermostat Heating/Cooling Heating/Cooling, Thermostat Number of Pipes 2 or 4, Thermostat Number of Speeds 3, Fan Switching Auto-On, Fan Coil, Hi-Med-Low, PTAC, Hi-Low, System Switching Auto-Heat-Cool-Off, Sensor Type -, 3 3/4 in, Sensing Bulb Dia. (In.) -, 6 in, Sensing Bulb Length (In.) -, 1 3/8 in
