Shop All Actuators and Damper Motors
Honeywell

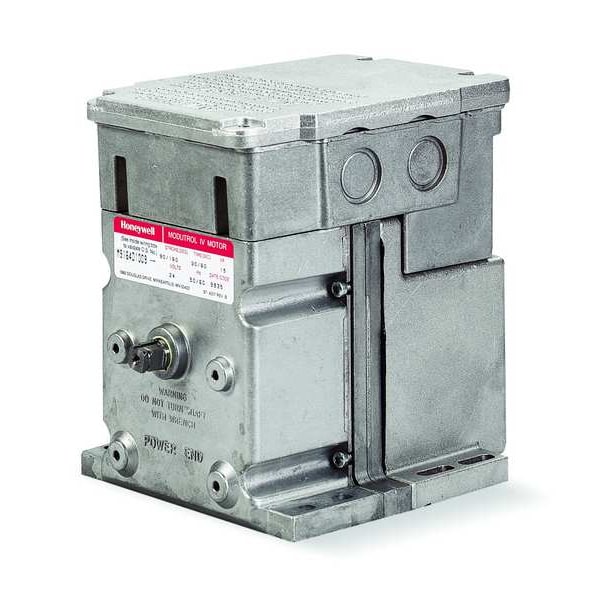

Electric Actuator, 150 in-lb, Remote Mount
Mfr # M9184D1021/U
Zoro # G1575454
Free Shipping & Returns
$1,499.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Mounting Type Remote Mount
- Spring Return Non-Spring Return
- Signal Type Proportional
- Torque 150 in-lb
- Voltage 24V AC
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Honeywell
- MFR # M9184D1021/U
- Zoro # G1575454
- UPC # 085267060158
- Country of Origin United States
- Category Actuators and Damper Motors
Dimensions
Width | 5 1/2 in |
Depth | 7 5/16 in |
Height | 6 7/16 in |
Overall Height | 6 1/2 in |
For Shaft Width | 3/8 in |
For Shaft Height | 3/8 in |
Overall Width | 5 1/2 in |
Overall Depth | 7 3/8 in |
Description
Actuator, Valve Application Damper and Valve, Signal Type Proportional, Rated Torque 150 in-lb, Input Voltage 24V AC, Electrical Connection Type Hardwired, NEMA Rating 3, Spring Return Non-Spring Return, Time to Close 60 sec, Shaft Type Double-Ended, Shaft Rotation CW, Stroke Degree 90 to 160 Degrees , Mounting Type Foot Mount, Maximum Operating Temperature 150 Degrees F, Minimum Operating Temperature -40 Degrees F, Compatible with Series 70, Overall Width 5 1/2 in
