24 in. W Hand Wash Sink with AXION Eye/Face Wash, Wall-Mount, Motion Activated
Mfr # 7660
Zoro # G510022209
Key Features
- Material Stainless Steel
- Color Steel
- Overall Length 20 in
- Bowl Shape Rectangular
- Overall Width 24 in
Product Information
- Brand Haws
- MFR # 7660
- Zoro # G510022209
- UPC # 611970363042
- Country of Origin United States
- Category Utility Sinks
Dimensions
Overall Length | 20 in |
Overall Width | 24 in |
Overall Depth | 6 in |
Details
Material | Stainless Steel |
Color | Steel |
Bowl Shape | Rectangular |
Flow Rate | Eye/Face Wash Flow Rate: 3.7 GPM; Faucet Flow Rate: 1.2 GPB |
Finish | Satin Stainless Steel |
Application | Government, Municipal, Healthcare Facilities, Indoor, Labs, Schools & Universities |
Description

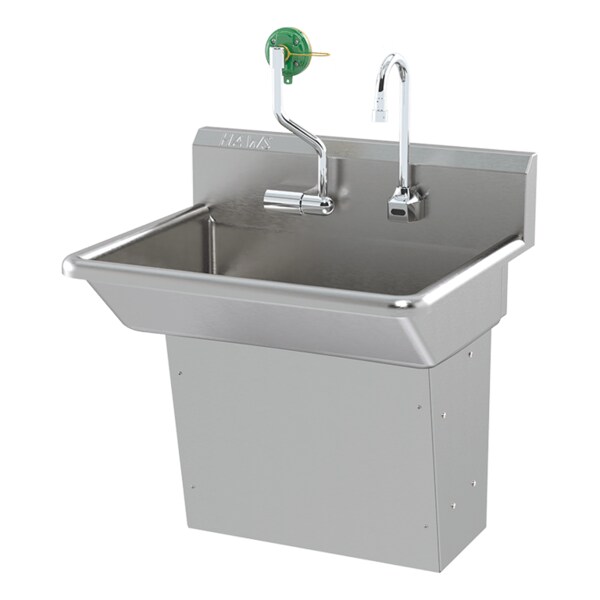

Model 7660 is a wall-mounted barrier-free hand wash sink equipped with a motion-activated goose-neck faucet. 24 in. wide 14 Gauge Type 304 Stainless Steel sink and wall supports incorporate a durable satin finish, and a removable front panel for access to the plumbing. Hand-wash motion-activated faucet provides 1.2 gpm of laminar flow, includes a separate 0.5 gpm laminar flow nozzle when low flow is required, and is powered via 110VAC wall power or battery power. Included is the Haws AXION MSR pulldown eye/face wash which features an inverted directional laminar flow and achieves Zero Vertical Velocity, supplied by an integral 3.7 gpm flow control and yellow pop-off dust cover. An ASSE 1071-certified adjustable thermostatic mixing valve tempers the hot and cold water inlets, supplying both the faucet and the eye/face wash to ensure user comfort and ANSI compliance. 1-1/2 in. male NPT integral drain with 1-1/2 in. tailpiece and trap are included. Also included: universal eyewash sign and operation label, along with a full-sized rough-in template for easy installation.
- •24" wide 14-gauge Type 304 Stainless Steel sink mounted on 14 gauge Type 304 Stainless Steel sink supports
- •Integral to the sink construction is the 1-1/2" male NPT drain with 1-1/2" trap and tailpiece supplied
- •Motion-activated faucet operation (operating on 110VAC or battery power) for safety and peace of mind
- •Supplied with .5 gpm and 1.2 gpm laminar flow faucet nozzles, with an optional 2.2 gpm laminar flow nozzle available for higher flow applications
- •Mixing valve included supplies tepid water to the eyewash and faucet
- •Easy access to the mixing valve, faucet batteries, plumbing and drain through the large front panel
