Harting

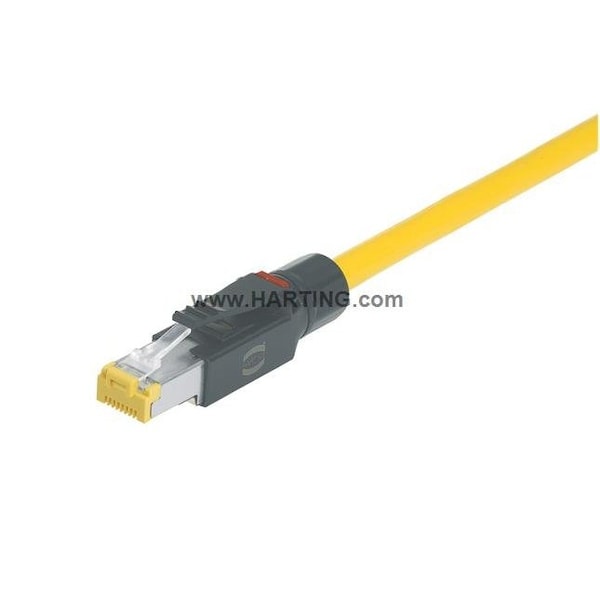

RJ45 Cable-Mount Connector, Black, Poles 8
Mfr # 09451511560
Zoro # G105293137
product price: $22.99
/ea
$22.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Shielded Yes
- Wire Size 27 to 22 AWG (Solid), 27 to 22 AWG (Standard)
- Standards CSA-C22.2 No. 182.3 ECBT8.E102079, DNV GL, ELV Compliant, IEC 11801, IEC 60603-7, RoHS Complaint, UL 1977 ECBT2.E102079, UL-94 V-0
- Number of Poles 8
- Connector Color Black
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Harting
- MFR # 09451511560
- Zoro # G105293137
- Country of Origin Romania
- Category Data & Ethernet Cables
Dimensions
| Wire Size | 27 to 22 AWG (Solid), 27 to 22 AWG (Standard) |
| Cable Diameter | 4.5 to 9 mm |
Details
| Shielded | Yes |
| Item | RJ45 Cable-Mount Connector |
| Standards | CSA-C22.2 No. 182.3 ECBT8.E102079, DNV GL, ELV Compliant, IEC 11801, IEC 60603-7, RoHS Complaint, UL 1977 ECBT2.E102079, UL-94 V-0 |
| Number of Poles | 8 |
| Connector Color | Black |
| Application | Data |
| Performance Category | Cat6 |
| Connection Type | Insulation Displacement |
| Voltage Rating | 50V AC, 60V DC |
| Connector Orientation | Straight |
| Minimum Mating Cycles | 750 |
| Data Rate | 10 Mbits, 100 Mbits, 1 Gbits, 2.5 Gbits, 5 Gbits, 10 Gbits |
| RJ45 Connector Type | Punch-Down Cable Connector |
| Housing Material | Polyamide |
| Connector Gender | Male |
| Series | HARTING RJ Industrial(R) |
| Current Rating | 1.75 A |
| IP Rating | IP20 |
| Temperature Range | -40 Degrees C to 70 Degrees C |
| Minimum Operating Temperature | -40 Degrees C |
| Connector Configuration | Male Straight |
| Maximum Operating Temperature | 70 Degrees C |
Description
HAEL 09451511560 RJI 10G CAT.6 IDC
