Harting

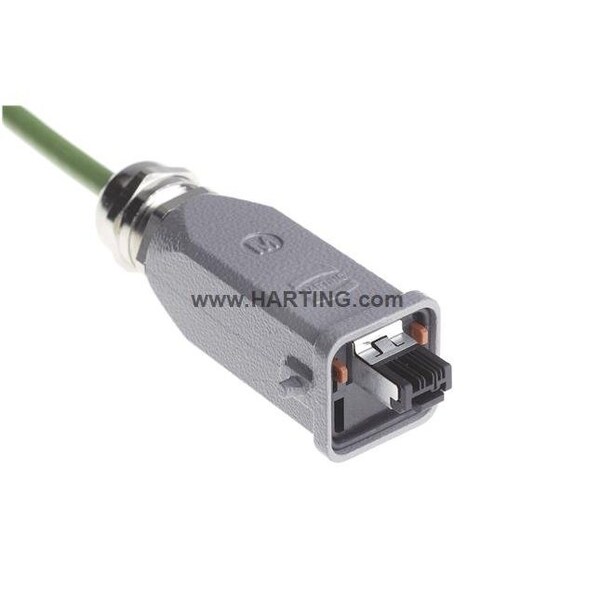

Han3A RJ45 Cable-Mount Connector, Poles 4
Mfr # 09451151100
Zoro # G505293164
Sold in multiples of 10 for $457.50
$457.50
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Shielded Yes
- Wire Size 23 to 22 AWG (Solid), 24 to 22 AWG (Standard)
- Standards California Proposition 65, CSA-C22.2 No. 182.3 ECBT8.E102079, DNV GL, ELV Compliant, EN 45545-2 R26: HL1, HL2, HL3, RoHS Complaint, UL 1977 ECBT2.E102079
- Number of Poles 4
- Application Data
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Harting
- MFR # 09451151100
- Zoro # G505293164
- Country of Origin Romania
- Category Data & Ethernet Cables
Dimensions
Wire Size | 23 to 22 AWG (Solid), 24 to 22 AWG (Standard) |
Cable Diameter | 5 to 9 mm |
Details
Shielded | Yes |
Item | Han 3A RJ45 Cable-Mount Connector |
Standards | California Proposition 65, CSA-C22.2 No. 182.3 ECBT8.E102079, DNV GL, ELV Compliant, EN 45545-2 R26: HL1, HL2, HL3, RoHS Complaint, UL 1977 ECBT2.E102079 |
Number of Poles | 4 |
Application | Data |
Data Rate | 10 Mbits, 100 Mbits |
Minimum Operating Temperature | -40 Degrees C |
Series | RJ45 |
Performance Category | Cat5 |
Connector Color | Gray |
Maximum Operating Temperature | 70 Degrees C |
Housing Material | Zinc Die-Cast |
Connection Type | Insulation Displacement |
Connector Orientation | Straight |
IP Rating | IP65, IP67 |
Connector Gender | Male |
Description
HAEL 09451151100 PLUG AND SOCKET
