Genie

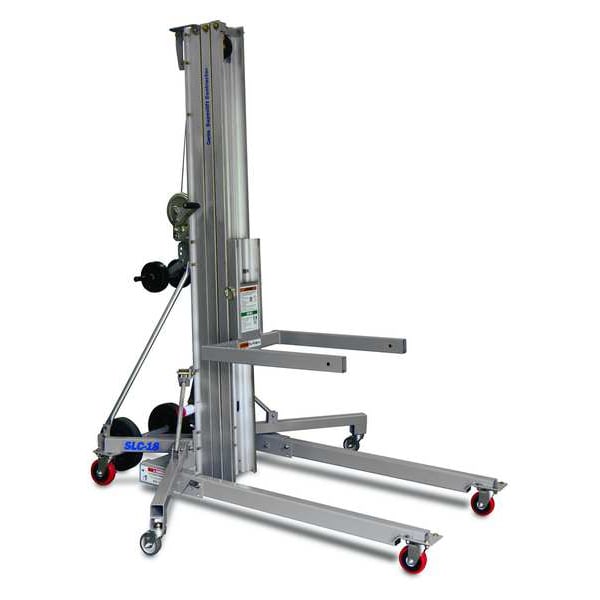

Manual Material Lift, Load Cap. 650 lb.

product price: $3,338.99
/ea
Item requires special delivery charges. A $150.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Overall Height 86 in
  • Overall Length 73 in
  • Overall Width 66 in
  • Color Silver
  • Load Capacity 650 lb
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Overall Height 86 in
Overall Length 73 in
Overall Width 66 in
Platform Length 27 in
Manufacturers Warranty Length 1 yr
Lifting Height Min. 6 in
Lifting Height Forks Up 222"
Base Legs Outside Dia. 31-1/2"
Lifting Height Forks Down 201 in
Fork Length 25 in
Rear Wheel Dia. 5 in
Fork Width 2 1/2 in
Lifting Height Max. 222 in
Front Wheel Dia. 4 in
Height Stowed 86 in
Width Between Forks 19 1/2 in
Stowed Height 86 in
Stowed Length 73 in
Caster Wheel Dia. 4 in, 5 in
Maximum Lifting Height 18 ft 6 in
Minimum Lifting Height 6 in
Stowed Width 66 in
Platform Width 23 in
Caster Wheel Width 1 1/4 in
Overall Height with Forks Raised 18 ft. 6 in
Base Outside Width 31 1/2 in
Width Across Forks 23 1/2 in
Overall Height with Forks Lowered 16 ft. 9 in
Lifting Height per Pump 7/8 in
Base Inside Width 23 1/2 in
Handle Height 47 in
Overall LxWxH 73 in x 66 in x 16 ft 9 in

Description

Heavy-Duty Manual Material Lift for Contractors, Load Capacity 650 lb, Platform Length 27 in, Platform Width 23 in, Maximum Lifting Height 18 ft 6 in, Minimum Lifting Height 6 in, Lift Control Hand Winch, Lift Mechanism Chain/Cable, Fork Length 25 in, Fork Width 2 1/2 in, Fork Type Invertible, Frame Material Steel, Base Material Steel, Base Type Fixed, Width Across Forks 23 1/2 in, Width Between Forks 19 1/2 in, Overall Height with Forks Lowered 16 ft. 9 in

Restrictions

  • This item has been restricted from sale in the following states: PR
