Shop All Platform Lifts
Genie

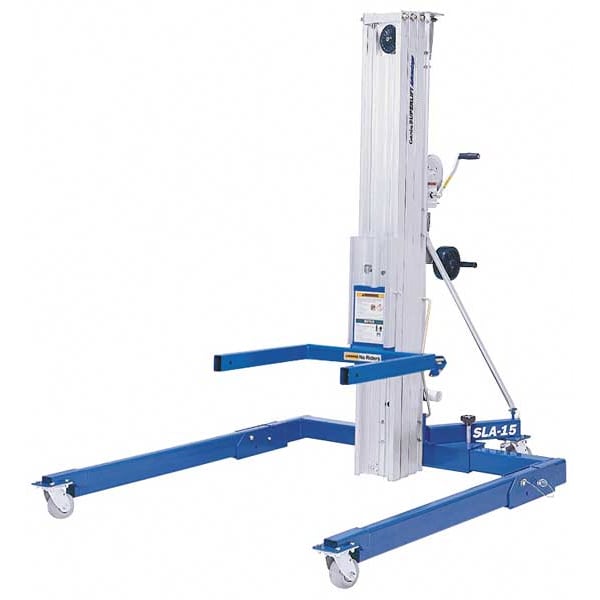

General Purpose Manual Material Lift, 800 lb Load Capacity, Hand Winch Lift Control

product price: $3,612.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Overall Height 78 1/2 in
  • Overall Length 74 in
  • Overall Width 58 in
  • Color Blue, Silver
  • Load Capacity 800 lb
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Overall Height 78 1/2 in
Overall Length 74 in
Overall Width 58 in
Platform Length 27 in
Lifting Height Forks Up 196"
Fork Width 3 in
Lifting Height Max. 196 in
Rear Wheel Dia. 5 in
Lifting Height Forks Down 175 1/2 in
Front Wheel Dia. 4 in
Lifting Height Min. 6 in
Manufacturers Warranty Length 1 yr
Fork Length 25 in
Height Stowed 78 1/2 in
Width Across Forks 23 1/2 in
Stowed Width 31 1/2 in
Caster Wheel Dia. 4 in, 5 in
Overall LxWxH 74 in x 58 in x 14 ft 6 in
Base Inside Width 23 1/2 in to 51 in
Maximum Lifting Height 16 ft 4 in
Caster Wheel Width 1 1/4 in
Minimum Lifting Height 6 in
Stowed Length 31 in
Stowed Height 78 1/2 in
Overall Height with Forks Raised 16 ft. 4 in
Handle Height 47 in
Lifting Height per Pump 7/8 in
Overall Height with Forks Lowered 14 ft. 6 in
Base Outside Width 31 1/2 in to 58 in
Width Between Forks 19 1/2 in

Description

General Purpose Manual Material Lift, Load Capacity 800 lb, Platform Length 27 in, Maximum Lifting Height 16 ft 4 in, Minimum Lifting Height 6 in, Lift Control Hand Winch, Lift Mechanism Chain/Cable, Fork Length 25 in, Fork Width 3 in, Fork Type Invertible, Frame Material Steel, Base Material Steel, Base Type Adjustable, Width Across Forks 23 1/2 in, Width Between Forks 19 1/2 in, Overall Height with Forks Lowered 14 ft. 6 in, Overall Height with Forks Raised 16 ft. 4 in

Restrictions

  • This item has been restricted from sale in the following states: PR
