Gates

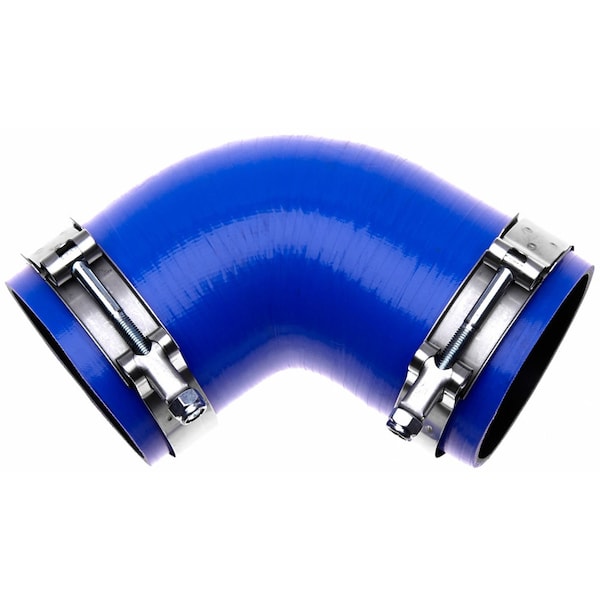

26261 Turbocharger Hose Kits(Molded)


product price: $126.99
/ea
Free Shipping & Returns

Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Features Resist corrosion and provide higher torque for optimal sealing; Specially formulated oil-resistant Fluorelastomer liner prevents damage; Increased durability due to multiple layers of reinforcement, resulting in longer service life; High-quality silicone cover provides extreme temperature resistance in high-temperature under-hood conditions
  • Type Turbocharger Hose Kit
  • Clamp Nut Type 7/16" Hex-Head
  • Clamp Bolt Type 1/4"-28 Male Pipe Thread
  • Clamp 1 Band Width (in) 3/4 in
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Clamp 1 Band Width (in) 3/4 in
Inside Diameter 2 (in) 3 in
Centerline Length (in) 7.67 in
Inside Diameter 1 (in) 3 in
Clamp 2 Band Width (in) 3/4 in

Details

Features Resist corrosion and provide higher torque for optimal sealing; Specially formulated oil-resistant Fluorelastomer liner prevents damage; Increased durability due to multiple layers of reinforcement, resulting in longer service life; High-quality silicone cover provides extreme temperature resistance in high-temperature under-hood conditions
Type Turbocharger Hose Kit
Clamp Nut Type 7/16" Hex-Head
Clamp Bolt Type 1/4"-28 Male Pipe Thread
Recommended Torque (in/lbs) 75
Clamping Range Clamp 1: 3-1/8 in to 3.4375 in
Grade Type OE Improved

Description

Gates Turbocharger Hose Kits offer the convenience of a complete solution in one kit. Not only are all the parts included, but the turbocharger hose features a construction far superior to the Original Equipment Manufacturer (OEM) equivalent.Silicone Hose and 2 T-Bolt Clamps all in one package provides convenience. Specially formulated Fluorelastomer liner prevents oil seepage and acts as a barrier to hydrocarbons and exhaust gasses- reducing downtime and providing superior service life.Meta-aramid reinforcement provides flexibility and strength for long life in demanding high temperature applications.High quality silicone cover provides superior service life and excellent heat resistance - up to 500 Deg. F (260 Deg. C).T-Bolt clamps provide higher torque for better sealing over traditional worm gear clamps, particularly in high vibration conditions. The T-Bolt clamps feature a 301 stainless steel band and bridge to resist corrosion better than carbon steel bands.The stainless steel bands, produced with fully rounded edges, prevent hose damage.T-Bolt Clamps come with a nut to minimize loosening.Gates - Driven By Possibility

Restrictions

  • This item has been restricted from sale in the following states: AK, GU, HI, PR, VI
