Gast

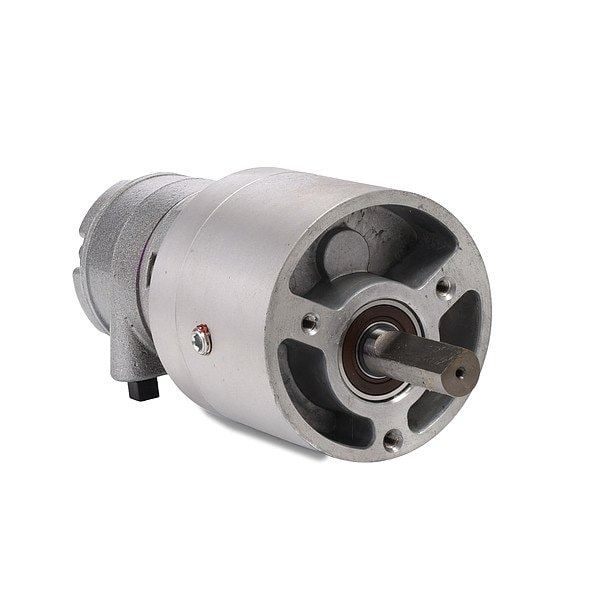

Stock 28/Skid 1Up-Nrv-11-Gr11 Air Motor
Mfr # 1UP-NRV-11-GR11
Zoro # G0602406
product price: $860.99
/ea
Free Shipping & Returns
$860.99
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Motor Design Air
- Rotation CW/CCW
- Overall Length 7 5/16 in
- Includes AGMA #8 Lubricant in Gear Chamber, High Strength Steel Output Shaft with Key and Plastic Cover, Tapered Roller Bearing and Hardened Polished Steel Worm Mating with Forged, Heat Treated High Manganese Bronze Worm Gear
- Shaft Length 1 3/8 in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Gast
- MFR # 1UP-NRV-11-GR11
- Zoro # G0602406
- Country of Origin United States
- Category Air Motors
Dimensions
Overall Length | 7 5/16 in |
Shaft Length | 1 3/8 in |
Length Less Shaft | 6 3/4 in |
Shaft Diameter | 1/2 in |
Outside Diameter | 2 15/16 in |
Overall Width | 2 15/16 in |
Mount Hole Center-to-Center Length | 2 in |
Mount Hole Center-to-Center Width | 2 in |
Inlet Size | 1/8 in |
Overall Height | 2 15/16 in |
Manufacturers Warranty Length | 1 yr |
Description
Air Motor, Output Power @ Maximum Speed 0.31 hp, Maximum Torque 49 in-lb, No Load Speed 400 RPM, Maximum Flow Rate 21 cfm, Shaft Diameter 1/2 in, Shaft Length 1 3/8 in, Mount Type Face, Inlet Size 1/8 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Aluminum, Gear Ratio 15:1, Air Consumption 21 cfm, Housing Material Finish Unfinished, Air Inlet Center to Center Distance 1 3/4 in, Inlet Gender Female, Output Power @ 25 Percent Maximum Speed 0.15 hp, Weight 3.1 lb, Series 1UP
