Gast

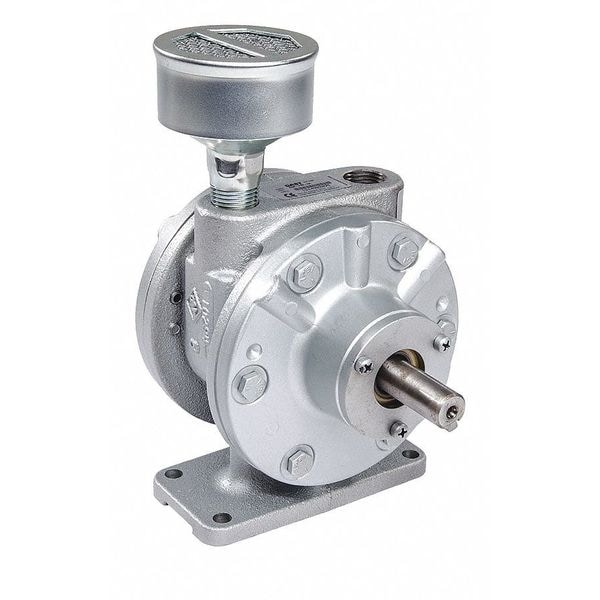

Stock 18/Skid 6Am-Frv-5A Air Motor
Mfr # 6AM-FRV-5A
Zoro # G0602491
Free Shipping & Returns
$575.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Motor Design AIR
- Rotation CW/CCW
- Overall Length 7 1/2 in
- Standards ATEX
- Shaft Length 1 3/8 in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Gast
- MFR # 6AM-FRV-5A
- Zoro # G0602491
- Country of Origin United States
- Category Air Motors
Dimensions
Overall Length | 7 1/2 in |
Shaft Length | 1 3/8 in |
Length Less Shaft | 6 11/100 in |
Overall Height | 6 in |
Shaft Diameter | 5/8 in |
Manufacturers Warranty Length | 1 yr |
Inlet Size | 1/2 in |
Outside Diameter | 5 in |
Keyway Length | 1 3/8 in |
Keyway Depth | 1/8 in |
Keyway Width | 1/8 in |
Overall Width | 5 in |
Description
Air Motor, Output Power @ Maximum Speed 4 hp, Maximum Torque 84 in-lb, No Load Speed 3,000 RPM, Maximum Flow Rate 130 cfm, Shaft Diameter 5/8 in, Shaft Length 1 3/8 in, Mount Type Foot, Inlet Size 1/2 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Cast Iron, Shaft Material Grade C1137OR C1141, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Muffler, Keyway Width 1/8 in, Weight 21 lb, Housing Material Grade G2500, Housing Material Finish Painted
