Shop All Air Motors
Gast

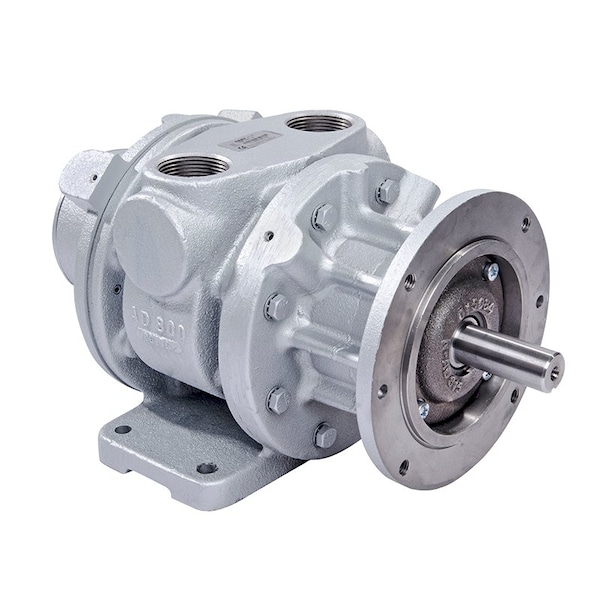

Stock 12/Skid 16Am-Frv-13 Air Motor
Mfr # 16AM-FRV-13
Zoro # G0602351
product price: $1,927.99
/ea
Free Shipping & Returns
$1,927.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Motor Design AIR
- Rotation CW/CCW
- Overall Length 13 5/8 in
- Mount Type Face
- Standards ATEX
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Gast
- MFR # 16AM-FRV-13
- Zoro # G0602351
- Country of Origin United States
- Category Air Motors
Dimensions
Overall Length | 13 5/8 in |
Shaft Length | 2 1/8 in |
Length Less Shaft | 11 13/25 in |
Overall Height | 7 1/4 in |
Outside Diameter | 8 in |
Overall Width | 8 in |
Inlet Size | 1 1/4 in |
Keyway Depth | 1/8 in |
Shaft Diameter | 7/8 in |
Keyway Length | 1 5/8 in |
Manufacturers Warranty Length | 1 yr |
Keyway Width | 1/8 in |
Description
Air Motor, Output Power @ Maximum Speed 9 hp, Maximum Torque 290 in-lb, No Load Speed 2,000 RPM, Maximum Flow Rate 280 cfm, Shaft Diameter 7/8 in, Shaft Length 2 1/8 in, Mount Type Face, Inlet Size 1 1/4 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Cast Iron, Shaft Material Grade 179-187 BHN, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Not Applicable, Keyway Width 1/8 in, Weight 80 lb, Housing Material Grade G2500, Housing Material Finish Painted
