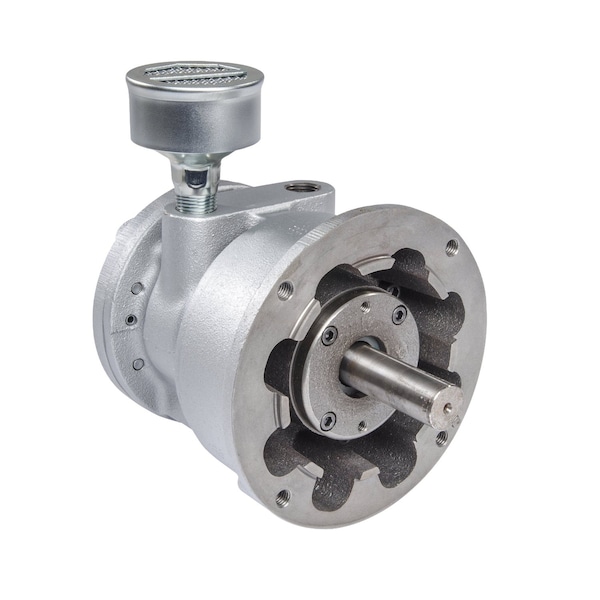

Gast Standard 8Am-Nrv-5B Air Motor
Mfr # 8AM-NRV-5B
Zoro # G0602421
product price: $833.99
/ea
Free Shipping & Returns
$833.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Motor Design AIR
- Rotation CW/CCW
- Overall Length 8 1/2 in
- Length Less Shaft 6 19/20 in
- Includes Muffler
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Gast
- MFR # 8AM-NRV-5B
- Zoro # G0602421
- Country of Origin United States
- Category Air Motors
Dimensions
Overall Length | 8 1/2 in |
Length Less Shaft | 6 19/20 in |
Shaft Length | 1 1/2 in |
Outside Diameter | 6 1/2 in |
Overall Width | 5 1/2 in |
Overall Height | 5 1/2 in |
Shaft Diameter | 3/4 in |
Manufacturers Warranty Length | 1 yr |
Keyway Width | 1/8 in |
Keyway Length | 1 3/8 in |
Inlet Size | 1/2 in |
Mount Hole Center-to-Center Width | 3 7/8 in |
Keyway Depth | 1/8 in |
Mount Hole Center-to-Center Length | 3 7/8 in |
Description
Air Motor, Output Power @ Maximum Speed 5 hp, Maximum Torque 132 in-lb, No Load Speed 2,500 RPM, Maximum Flow Rate 175 cfm, Shaft Diameter 3/4 in, Shaft Length 1 1/2 in, Mount Type Face, Inlet Size 1/2 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Cast Iron, Shaft Material Grade Not Applicable, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Muffler, Keyway Width 1/8 in, Weight 28 lb, Housing Material Grade G2500, Housing Material Finish Painted
