Shop All Carbide End Mills
Garant

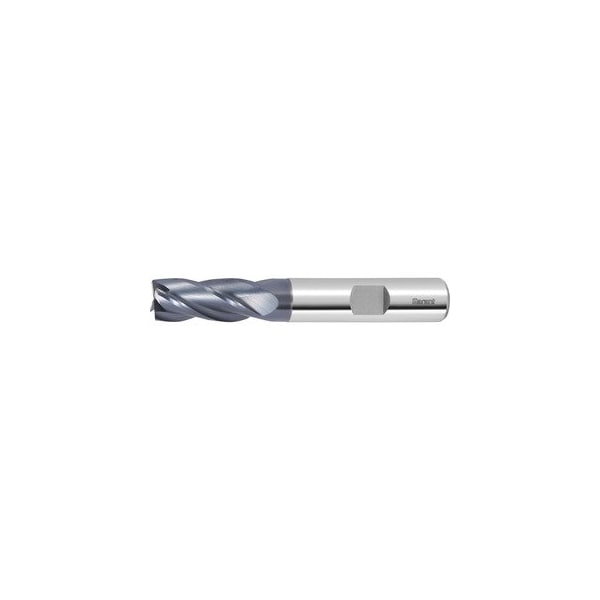

Solid Carbide Square End Mill, 8 mm, TiAlN Coated
Mfr # 202725 8
Zoro # G609578693
product price: $59.59
/ea
$59.59
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Material Solid carbide
- Finish TiAlN
- Type End / face mill - H
- Shank Dia. 8 mm
- Shank Type DIN 6535 HB to h6
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Garant
- MFR # 202725 8
- Zoro # G609578693
- UPC # 4045197746467
- Country of Origin Germany
- Category Carbide End Mills
Dimensions
Overall Length | 70 mm |
Milling Diameter | 8 mm |
Shank Dia. | 8 mm |
Overhang Length | 32 mm |
Max. Cutting Depth - Slot Milling | 4 mm |
Flute Length | 22 mm |
Max. Cutting Depth - Side Milling | 22 mm |
Min. Cutting Depth | 0.01 mm |
Recess Diameter | 7.8 mm |
Details
Material | Solid carbide |
Finish | TiAlN |
Type | End / face mill - H |
Shank Type | DIN 6535 HB to h6 |
Coolant Through | No |
Cutting Direction | horizontal, oblique and vertical |
Helix angle | 30 ° |
Chamfer Angle | 90 Degrees |
Slot Milling Feed in Steel | 0.04 mm |
Number of Teeth | 4 |
Correction Factor | 1.25 |
Side Milling Feed in Steel | 0.045 mm |
Description
Double relief ground side clearance angle. Without 45Deg cutting edge chamfer. Through-coolant: no No. of teeth Z: 4 Helix angle: 30 Deg Direction of infeed: horizontal- oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 4 Flute length Lc: 22 mm Overhang length L1 incl. recess: 32 mm Recess dia D1: 7.8 mm Overall length L: 70 mm Shank dia Ds: 8 mm
