Shop All General Purpose Relays
Functional Devices-Rib

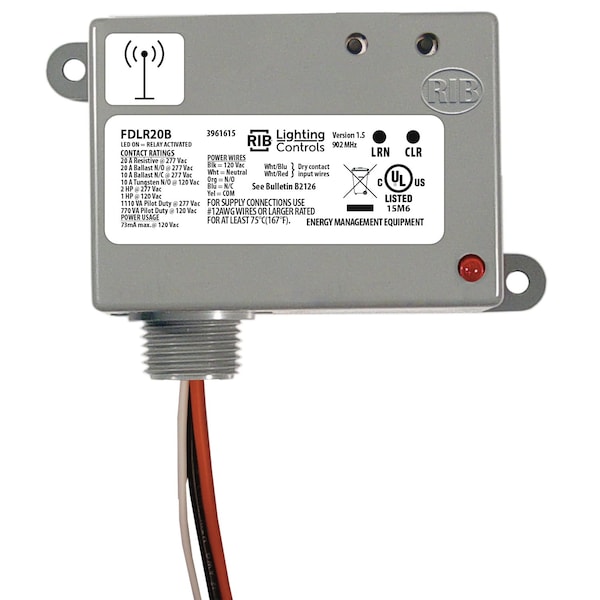

Wireless Lighting Relay, Transceiver/Repeater, 120 Vac Input, SPDT rel
Mfr # FDLR20B
Zoro # G1958567
product price: $191.99
/ea
Free Shipping & Returns
$191.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Amps 20 Amp
- Voltage 120Vac
- Dimensions 2.39"H x 3.31"W x 1.81"D with 0.50" NPT nipple
- Width 3.2
- Length 2.3
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Functional Devices-Rib
- MFR # FDLR20B
- Zoro # G1958567
- Country of Origin United States
- Category General Purpose Relays
Dimensions
| Dimensions | 2.39"H x 3.31"W x 1.81"D with 0.50" NPT nipple |
| Width | 3.2 |
| Length | 2.3 |
Details
| Amps | 20 Amp |
| Voltage | 120Vac |
| Item | WIRELESS CONTROL RELAY |
| Color | Gray |
| Frequency | 902 MHz |
| Built-in Switch Modes | Alarm, Repeater, Delay, Rocker, Momentary, and Toggle |
| Approvals | UL Listed, UL916, C-UL |
| Override (Test Switch) | No |
| Wires | 16", 600V Rated |
| Housing Rating | UL Accepted for Use in Plenum, NEMA 1 |
| Operating Temperature | -30 to 140° F |
| Gold Flash | No |
| Expected Relay Life | 10 million cycles minimum mechanical |
| Conducted Power | 5 mW typical |
| Coil Current | 73 mA @ 120 Vac ; 60 Hz |
| Relay Status | Red: Relay Status / Learn Mode Status (Flashing) |
| Contact Ratings | 20 Amp Resistive @ 277 Vac 20 Amp Ballast @ 277 Vac 16 Amp Electronic Ballast @ 277 Vac (N/O) 10 Amp Tungsten @ 120 Vac (N/O) 770 VA Pilot Duty @ 120 Vac 1,110 VA Pilot Duty @ 277 Vac 2 HP @ 277 Vac 1 HP @ 120 Vac |
| Receiver Sensitivity | -93 dBm typical |
| Humidity Range | 5-95%(noncondensing) |
| No. of Relays & Contact Type | One (1) SPST Continuous Duty Coil |
Description
Wireless Lighting Relay, Transceiver/Repeater, 120 Vac Input, SPDT relay with 10A; 120Vac In and, 20A; 277Vac Bal and 16A; 277Vac EB ratings; EnOcean 902 MHz, NEMA 1 Enclosure
