Shop All General Purpose Relays
Functional Devices-Rib

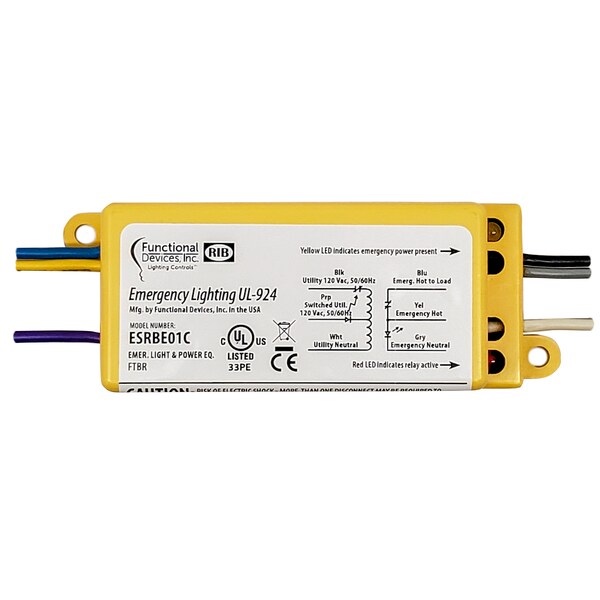

UL 924 Emergency Bypass/Shunt Relay, 120 Vac Input, 277Vac Bal and 2A
Mfr # ESRBE01C
Zoro # G1958445
product price: $90.99
/ea
Free Shipping & Returns
$90.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Width 1.2
- Voltage 120 Vac
- Dimensions 1.68"H x 4.58"W x 1.18"D
- Amps 10 Amp
- Length 4.6
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Functional Devices-Rib
- MFR # ESRBE01C
- Zoro # G1958445
- Country of Origin United States
- Category General Purpose Relays
Dimensions
| Width | 1.2 |
| Dimensions | 1.68"H x 4.58"W x 1.18"D |
| Length | 4.6 |
Details
| Voltage | 120 Vac |
| Item | Emergency Lighting Automatic Load Control Relay |
| Amps | 10 Amp |
| Color | Yellow |
| Operate Time | 50 ms |
| No. of Relays & Contact Type | One (1) SPST-NC Continuous Duty Coil |
| Wires | 16", 600V Rated |
| Coil Voltage Input | 120 Vac ; 50-60 Hz |
| Gold Flash | No |
| Emergency Power Present | Yellow LED On - Transfer Power Present |
| Approvals | UL Listed, UL924, C-UL, CE |
| Coil Current | 100 mA @ 120 Vac |
| Expected Relay Life | 10 million cycles minimum mechanical |
| Contact Ratings | 10 Amp Magnetic Ballast @ 277 Vac (N/C) 2 Amp Electronic Ballast @ 120 Vac (N/C) |
| Relay Status | Red LED On - Activated |
| Operating Temperature | -30 to 140° F |
Description
UL 924 Emergency Bypass/Shunt Relay, 120 Vac Voltage Input, SPST relay with 10A; 277Vac Bal and 2A; 120Vac EB ratings; Switched Utility Detection, NEMA 1 Ballast Enclosure
