Shop All Current Sensing Relays
Functional Devices-Rib

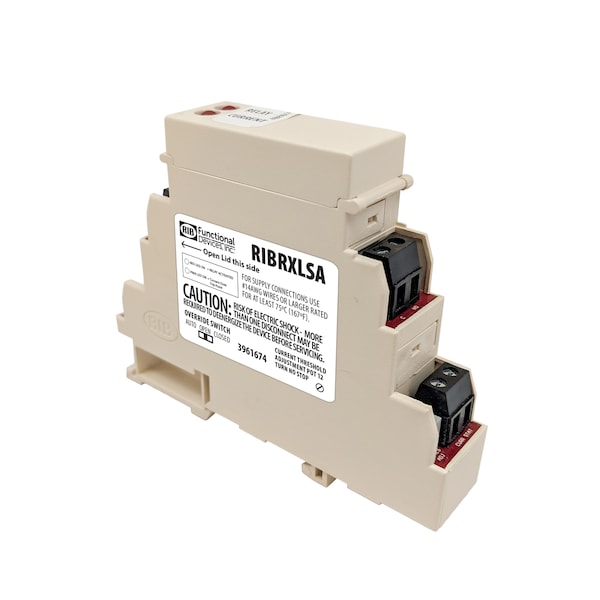

Switch and DIN Mount Relay Combination, 10 Amp SPST-N/O + Coil Side Ov

product price: $85.15
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Width 4
  • Voltage 10-30 Vac/dc
  • Color Gray
  • Approvals UL Listed, UL916, C-UL, CE
  • Sensing Range .25 - 10A
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Width 4
Dimensions 2.76"H x 3.88"W x 0.78"D

Details

Item Current Switch and Relay Combination
Voltage 10-30 Vac/dc
Color Gray
Approvals UL Listed, UL916, C-UL, CE
Sensing Range .25 - 10A
Terminal Strip 14-22 AWG wire
Operating Temperature -30 to 140° F
Operate Time 20ms
Contact Ratings 10 Amp Resistive @ 277 Vac 10 Amp Resistive @ 28 Vdc 480 VA Pilot Duty @ 240/277 Vac 480 VA Ballast @ 277 Vac Not rated for Electronic Ballast 600 Watt Tungsten @ 120 Vac 1/3 HP @ 120-240 Vac 1/4 HP @ 277 Vac
Power and Control Voltage 10-30 Vac/dc ; 50-60 Hz Drop Out - 2.1 Vac / 2.8 Vdc Pull In - 9 Vac / 10 Vdc
Gold Flash Yes
Relay Status LED On - Activated
Humidity Range 5 to 95% (noncondensing)
Accessories ADIN35, ADIN35ES
Expected Relay Life 10 million cycles minimum mechanical
Replacement Relay ARL1C
Coil Current 33 mA @ 10 Vac 35 mA @ 12 Vac 46 mA @ 24 Vac 55 mA @ 30 Vac 13 mA @ 10 Vdc 15 mA @ 12 Vdc 18 mA @ 24 Vdc 20 mA @ 30 Vdc
No. of Relays & Contact Type One (1) SPST Continuous Duty Coil
Sensor Contact Solid State Contact 30Vac/dc, 0.1A Max.

Description

Switch and DIN Mount Relay Combination, 10 Amp SPST-N/O + Coil Side Override, 10-30 Vac/dc Coil, Adjustable, 0.25-10 Amp, NEMA 1 Housing
