  10. /
  11. Relay, 24 Vac/dc Coil, 5540W; 277Vac In, 20A; 120-277Vac Bal and 16A
Shop All Latching Relays
Functional Devices-Rib

Relay, 24 Vac/dc Coil, 5540W; 277Vac In, 20A; 120-277Vac Bal and 16A

product price: $86.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Color Gray
  • Voltage 24Vac/dc
  • Maximum Pulse Length 30 seconds
  • Dimensions 2.39"H x 3.31"W x 1.81"D with 0.50" NPT nipple
  • Contact Closed LED On - Voltage Detected on Load Wire
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Maximum Pulse Length 30 seconds
Dimensions 2.39"H x 3.31"W x 1.81"D with 0.50" NPT nipple

Details

Color Gray
Voltage 24Vac/dc
Contact Closed LED On - Voltage Detected on Load Wire
Expected Relay Life 1 million cycles minimum mechanical
Auxiliary Contact 3 Amp @ 30 Vac/dc max.
Gold Flash No
Housing Rating UL Accepted for Use in Plenum, NEMA 1
Operating Temperature -30 to 140° F
Contact Ratings 20 Amp Resistive @ 120-277 Vac 20 Amp Ballast @ 120-277 Vac 16 Amp Electronic Ballast @ 120-277 Vac 5540 Watt Tungsten @ 277 Vac 720 VA Pilot Duty @ 120-277 Vac 2 HP @ 277 Vac 3 HP @ 240 Vac 1.5 HP @ 120 Vac
Latch / Unlatch Min. 20 Vdc / 22 Vac
Humidity Range 5 to 95% (noncondensing)
Coil Current 175 mA @ 20 Vac 210 mA @ 24 Vac 92 mA @ 20 Vdc 110 mA @ 24 Vdc 138 mA @ 30 Vdc
Approvals UL Listed, UL60947, C-UL, CE
Wires 16", 600V Rated
Operate Time 50ms
No. of Relays & Contact Type One (1) SPST Latching Relay, Dual Coil
Override Switch No

Description

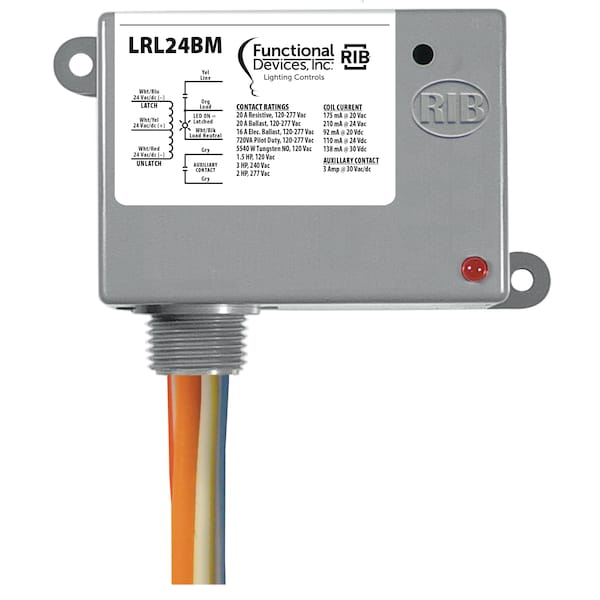

Mechanically Latching Lighting Relay, 24 Vac/dc Coil, SPST relay with 5540W; 277Vac In and, 20A; 120-277Vac Bal and 16A; 120-277Vac EB ratings; Status LED, Auxiliary Output, NEMA 1 Enclosure
