Shop All Pre-wired Enclosed Relays
Functional Devices-Rib

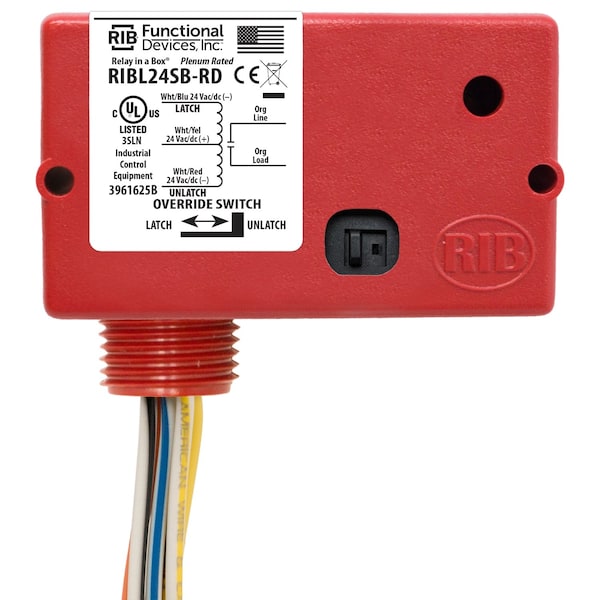

Latch Relay, 20A, SPST+Oride, 24VAC/DC, Red
Mfr # RIBL24SB-RD
Zoro # G6990090
product price: $75.89
/ea
Free Shipping & Returns
$75.89
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Voltage 24 Vac/dc
- Dimensions 1.70" x 2.80" x 1.50" with .50" NPT Nipple
- Amps 20 Amp
- Height 1.5
- Width 2.8
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Functional Devices-Rib
- MFR # RIBL24SB-RD
- Zoro # G6990090
- Country of Origin United States
- Category Pre-wired Enclosed Relays
Dimensions
Dimensions | 1.70" x 2.80" x 1.50" with .50" NPT Nipple |
Height | 1.5 |
Width | 2.8 |
Maximum Pulse Length | 30 seconds |
Details
Item | LatchRelay20 AmpSPST+Oride,24 Vac/dc,Red |
Voltage | 24 Vac/dc |
Amps | 20 Amp |
Color | Red |
Approvals | UL Listed, UL60947, C-UL, CE |
Gold Flash | No |
Humidity Range | 5 to 95% (noncondensing) |
Housing Rating | UL Accepted for Use in Plenum, NEMA 1 |
Contact Ratings | 20 Amp Resistive @ 120-277 Vac 20 Amp Ballast @ 120-277 Vac 16 Amp Electronic Ballast @ 120-277 Vac 5540 Watt Tungsten @ 277 Vac 720 VA Pilot Duty @ 120-277 Vac 2 HP @ 277 Vac 3 HP @ 240 Vac 1.5 HP @ 120 Vac |
Coil Current | 175 mA @ 20 Vac 210 mA @ 24 Vac 92 mA @ 20 Vdc 110 mA @ 24 Vdc 138 mA @ 30 Vdc |
Expected Relay Life | 1 million cycles minimum mechanical |
No. of Relays & Contact Type | One (1) SPST Latching Relay, Dual Coil |
Operate Time | 50ms |
Wires | 16", 600V Rated |
Override Switch | Yes |
Operating Temperature | -30 to 140° F |
Latch / Unlatch | Min. 10 Vdc / 11 Vac |
Description
Mechanically Latching Relay, 20 Amp SPST + True Override, 24 Vac/dc Coil, Red Housing
