Functional Devices-Rib

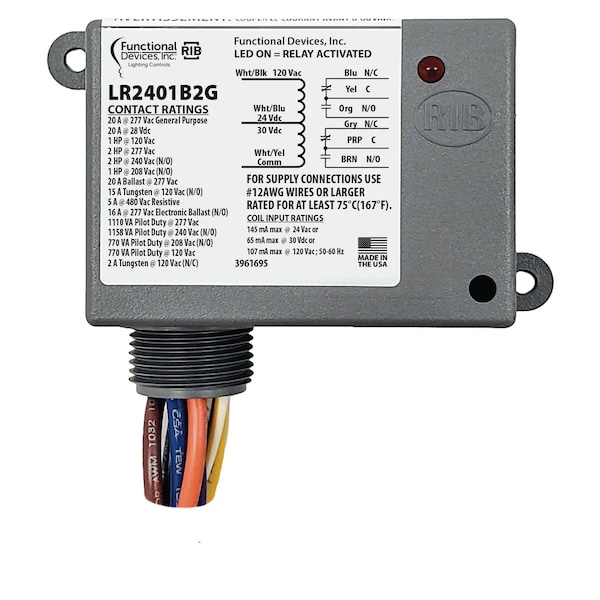

General Purpose Lighting Relay, 24 Vac/dc 120Vac Input, DPDT relay wit

product price: $48.99
/ea
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Dimensions 2.39"H x 3.31"W x 1.81"D with 0.75" NPT nipple
  • Amps 20 Amp
  • Voltage 24Vac/dc 120Vac
  • Width 3.2
  • Length 2.3
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Dimensions 2.39"H x 3.31"W x 1.81"D with 0.75" NPT nipple
Width 3.2
Length 2.3

Details

Item Power Relay
Amps 20 Amp
Voltage 24Vac/dc 120Vac
Color Gray
Gold Flash No
Coil Current 145 mA max @ 24 Vac 65 mA max @ 30 Vdc 107 mA @ 120 Vac
Operating Temperature -30 to 140° F
Override (Test Switch) No
No. of Relays & Contact Type DPDT Continuous Duty Coil
Humidity Range 5 to 95% (noncondensing)
Expected Relay Life 10 million cycles minimum mechanical
Housing Rating UL Accepted for Use in Plenum, NEMA 1
Contact Ratings 20 A @ 277 Vac General Purpose 20 A @ 28 Vdc 1 HP @ 120 Vac 2 HP @ 277 Vac 2 HP @ 240 Vac (N/O) 1 HP @ 208 Vac (N/O) 20 A Ballast @ 277 Vac 15 A Tungsten @ 120 Vac (N/O) 5 A @ 480 Vac Resistive 16 A @ 277 Vac Electronic Ballast (N/O) 1110 VA Pilot Duty @ 277 Vac 1158 VA Pilot Duty @ 240 Vac (N/O) 770 VA Pilot Duty @ 208 Vac (N/O) 770 VA Pilot Duty @ 120 Vac 2 A Tungsten @ 120 Vac (N/C)
Approvals UL Listed, UL916, C-UL, CE
Operate Time 18ms
Wires 16", 600V Rated
Coil Voltage Input 24 Vac/dc ; 120 Vac ; 50-60 Hz Drop Out - 13.5 Vac / 15.5 Vdc Pull In - 18 Vac / 22 Vdc
Relay Status LED On - Activated

Description

General Purpose Lighting Relay, 24 Vac/dc 120Vac Input, DPDT relay with 15A; 120Vac In and, 20A; 277Vac Bal and 16A; 277Vac EB ratings; NEMA 1 Enclosure
