Functional Devices-Rib

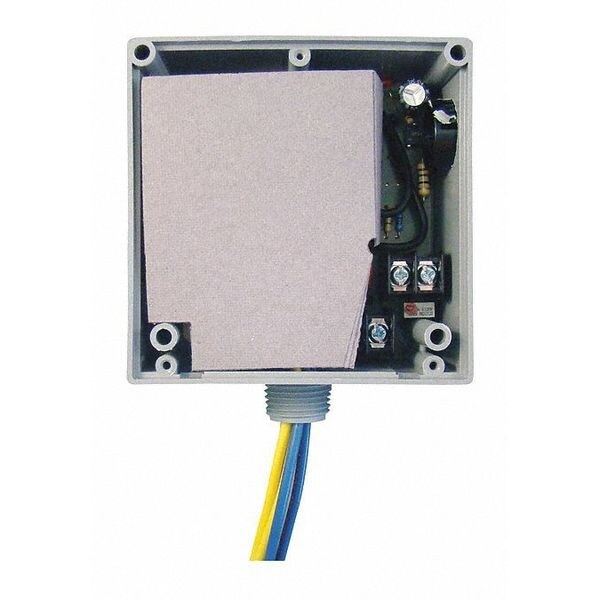

Enclosed SPST Relay/Analog, 20A

product price: $93.19
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Height 1.8
  • Width 4
  • Dimensions 4.00"H x 4.00"W x 1.81"D with 0.50" NPT nipple
  • Operate Time 20ms
  • Contact Ratings 20 Amp Resistive @ 300 Vac, 28 Vdc 20 Amp Ballast @ 277-480 Vac Not rated for Electronic Ballast 15 Amp Resistive @ 600 Vac 770 VA Pilot Duty @ 120 Vac, 1 Phase 1158 VA Pilot Duty @ 240 Vac, 1 Phase 1110 VA Pilot Duty @ 277 Vac, 1 Phase 1640 VA Pilot Duty @ 480 Vac, 1 Phase 1466 VA Pilot Duty @ 240 Vac, 3 Phase 2112 VA Pilot Duty @ 480 Vac, 3 Phase Heavy Pilot Duty @ 600 Vac 7.5 HP @ 480 Vac, 3 Phase 5 HP @ 240 Vac, 3 Phase 3 HP @ 480-600 Vac, 1 Phase 2 HP @ 240-277 Vac, 1 Phase 1 HP @ 120 Vac, 1 Phase
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Height 1.8
Width 4
Dimensions 4.00"H x 4.00"W x 1.81"D with 0.50" NPT nipple
Wire Length 16", 600V Rated

Details

Item Enclosed,20A,SPST,Relay/Analog
Operate Time 20ms
Contact Ratings 20 Amp Resistive @ 300 Vac, 28 Vdc 20 Amp Ballast @ 277-480 Vac Not rated for Electronic Ballast 15 Amp Resistive @ 600 Vac 770 VA Pilot Duty @ 120 Vac, 1 Phase 1158 VA Pilot Duty @ 240 Vac, 1 Phase 1110 VA Pilot Duty @ 277 Vac, 1 Phase 1640 VA Pilot Duty @ 480 Vac, 1 Phase 1466 VA Pilot Duty @ 240 Vac, 3 Phase 2112 VA Pilot Duty @ 480 Vac, 3 Phase Heavy Pilot Duty @ 600 Vac 7.5 HP @ 480 Vac, 3 Phase 5 HP @ 240 Vac, 3 Phase 3 HP @ 480-600 Vac, 1 Phase 2 HP @ 240-277 Vac, 1 Phase 1 HP @ 120 Vac, 1 Phase
Relay Status Red LED On - Activated
Expected Relay Life 10 million cycles minimum mechanical
Override Switch No
Humidity Range 5 to 95% (noncondensing)
Sensor Range .50-20 Amps
No. of Relays & Contact Type One (1) 3PST Continuous Duty Coil
Operating Temperature -30 to 140° F
Gold Flash No
Coil Voltage Input 24 Vac/dc ; 50-60 Hz Drop Out - 3 Vac / 3.8 Vdc Pull In - 20 Vac / 22 Vdc
Coil Current 210 mA @ 24 Vac 154 mA @ 30 Vdc
Approvals UL Listed, UL916, C-UL, CE
Sensor Type Internal, with contact status Current sensing on orange wires
Housing Rating UL Accepted for Use in Plenum, NEMA 1

Description

Transducer and Relay Combination, 20 Amp 3PST-N/O, 24 Vac/dc Coil, Analog, 0-20 Amp, 0-10 Vdc Output, NEMA 1 Housing
