Shop All Pre-wired Enclosed Relays
Functional Devices-Rib

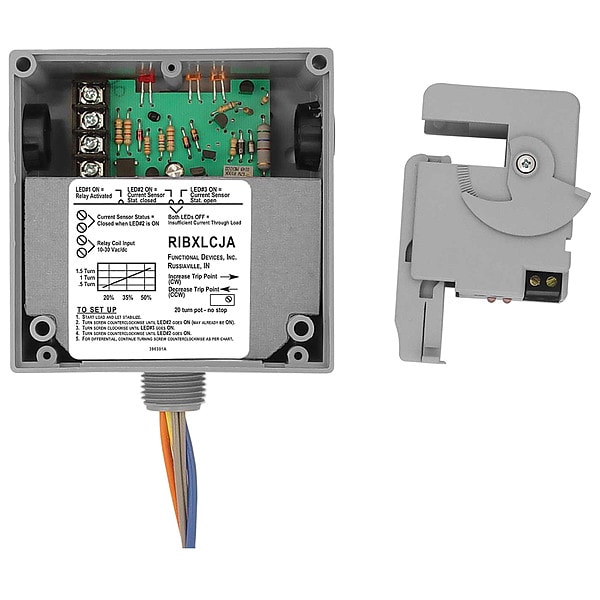

Enclosed Relay/Remte Split Core, Adj., 10A
Mfr # RIBXLCJA
Zoro # G3227222
product price: $55.85
/ea
$55.85
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Height 1.8
- Width 4
- Dimensions 4.00"H x 4.00"W x 1.81"D with 0.50" NPT nipple
- Operate Time 20ms
- Type Remote Split Core
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Functional Devices-Rib
- MFR # RIBXLCJA
- Zoro # G3227222
- Country of Origin United States
- Category Pre-wired Enclosed Relays
Dimensions
Height | 1.8 |
Width | 4 |
Dimensions | 4.00"H x 4.00"W x 1.81"D with 0.50" NPT nipple |
Wire Length | 16", 600V Rated |
Details
Item | Enclosed Relay/Remte Split Core,Adj.,10A |
Operate Time | 20ms |
Type | Remote Split Core |
Humidity Range | 5 to 95% (noncondensing) |
Housing Rating | UL Accepted for Use in Plenum, NEMA 1 |
Relay Status | Red LED On - Activated |
Gold Flash | Yes |
Operating Temperature | -30 to 140° F |
Coil Voltage Input | 10-30 Vac/dc ; 50-60 Hz Drop Out - 2.1 Vac / 2.8 Vdc Pull In - 9 Vac / 10 Vdc |
No. of Relays & Contact Type | One (1) SPDT Continuous Duty Coil |
Approvals | UL Listed, UL916, C-UL, CE |
Coil Current | 33 mA @ 10 Vac 35 mA @ 12 Vac 46 mA @ 24 Vac 55 mA @ 30 Vac 13 mA @ 10 Vdc 15 mA @ 12 Vdc 18 mA @ 24 Vdc 20 mA @ 30 Vdc |
Override Switch | No |
Threshold | Adjustable, 3-150 Amp |
Expected Relay Life | 10 million cycles minimum mechanical |
Series | RIBXLC Series |
Description
Enclosed Relay/Remte Split Core,Adj.,10A
