Functional Devices-Rib

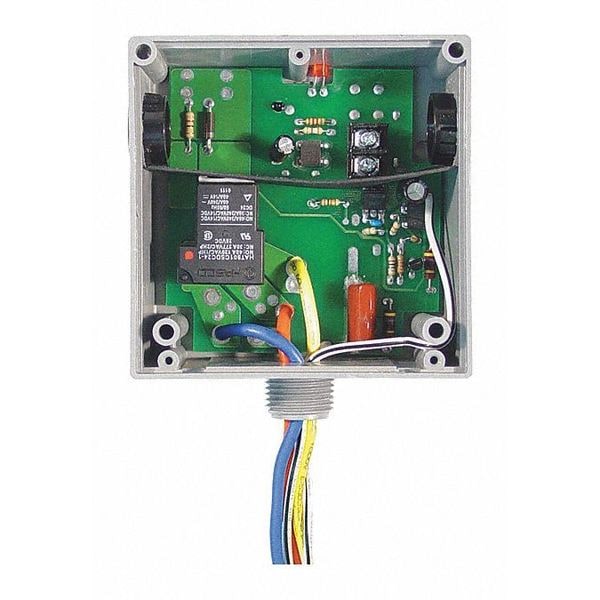

Enclosed Relay, Hi/Low Sparation, SPDT, 20A
Mfr # RIBTE01B
Zoro # G3226190
product price: $44.15
/ea
$44.15
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Height 1.8
- Width 4
- Dimensions 4.00"H x 4.00"W x 1.81"D with 0.50" NPT nipple
- Power Input Ratings 47 mA @ 120 Vac
- Control Input Ratings .4 mA @ 5 Vdc .9 mA @ 10 Vdc 1 mA @ 12 Vdc 2 mA @ 24 Vdc 3 mA @ 24 Vac (Non Polarized)
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Functional Devices-Rib
- MFR # RIBTE01B
- Zoro # G3226190
- Country of Origin United States
- Category Pre-wired Enclosed Relays
Dimensions
Height | 1.8 |
Width | 4 |
Dimensions | 4.00"H x 4.00"W x 1.81"D with 0.50" NPT nipple |
Details
Item | Enclosed Relay,Hi/Low Sparation,SPDT,20A |
Power Input Ratings | 47 mA @ 120 Vac |
Control Input Ratings | .4 mA @ 5 Vdc .9 mA @ 10 Vdc 1 mA @ 12 Vdc 2 mA @ 24 Vdc 3 mA @ 24 Vac (Non Polarized) |
Relay Status | LED On - Activated |
Override Switch | No |
Expected Relay Life | 10 million cycles minimum mechanical |
No. of Relays & Contact Type | One (1) SPDT Continuous Duty Coil |
Control Input | 5-25 Vac/dc, 50-60 Hz |
Operating Temperature | -30 to 140° F |
Power Input | 120 Vac, 50-60 Hz |
Gold Flash | No |
Operate Time | 18ms |
Contact Ratings | 20 Amp Resistive @ 277 Vac 5 Amp Resistive @ 480 Vac 1110 VA Pilot Duty @ 277 Vac 770 VA Pilot Duty @ 120 Vac 20 Amp Ballast @ 277 Vac 16 Amp Electronic Ballast @ 277 Vac (N/O) 10 Amp Tungsten @ 120 Vac (N/O) 240 Watt Tungsten @ 120 Vac (N/C) 2 HP @ 277 Vac 1 HP @ 120 Vac |
Approvals | UL Listed, UL916, C-UL,CE |
Wires | 16", 600V Rated |
Housing Rating | UL Accepted for Use in Plenum, NEMA 1 |
Humidity Range | 5 to 95% (noncondensing) |
Description
Low Input/Optoisolated Relay, 20 Amp SPDT, 120 Vac Power Input, 5-25 Vac/dc Control Input, Hi/Lo Voltage Separation, NEMA 1 Housing
