Functional Devices-Rib

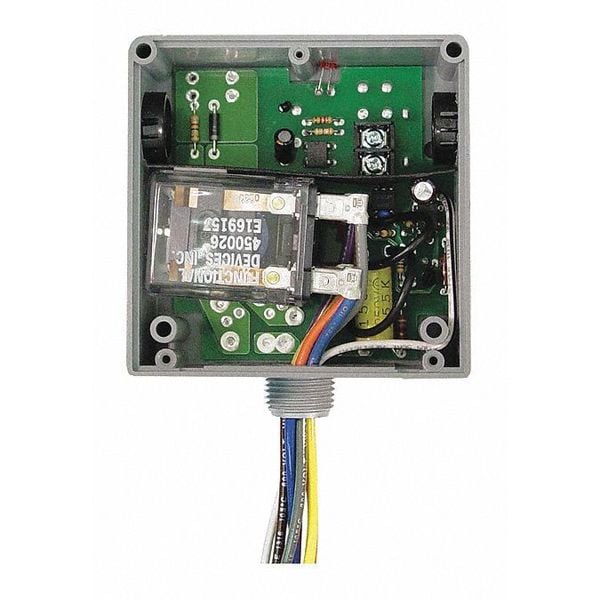

Enclosed Relay, Hi/Low, 208-277VAC, 20A

product price: $77.65
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Coil Volts 208 to 277VAC
  • Height 1.8
  • Dimensions 4.00"H x 4.00"W x 1.81"D with 0.50" NPT nipple
  • Width 4
  • Operate Time 18ms
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Height 1.8
Dimensions 4.00"H x 4.00"W x 1.81"D with 0.50" NPT nipple
Width 4

Details

Coil Volts 208 to 277VAC
Item Enclosed Relay,Hi/Low,208-277VAC,20A
Operate Time 18ms
Control Input 5-25 Vac/dc, 50-60 Hz
Power Input Ratings 105 mA @ 208-277 Vac
Approvals UL Listed, UL916, C-UL,CE
No. of Relays & Contact Type One (1) DPDT Continuous Duty Coil
Gold Flash Yes
Control Input Ratings .4 mA @ 5 Vdc .9 mA @ 10 Vdc 1 mA @ 12 Vdc 2 mA @ 24 Vdc 3 mA @ 24 Vac (Non Polarized)
Humidity Range 5 to 95% (noncondensing)
Expected Relay Life 10 million cycles minimum mechanical
Contact Ratings 20 Amp Resistive @ 300 Vac 20 Amp Resistive @ 28 Vdc 15 Amp Resistive @ 600 Vac 20 Amp Ballast @ 277-480 Vac Not rated for Electronic Ballast 770 VA Pilot Duty @ 120 Vac 1158 VA Pilot Duty @ 240 Vac 1110 VA Pilot Duty @ 277 Vac 1640 VA Pilot Duty @ 480 Vac 3 HP @ 480-600 Vac 2 HP @ 240-277 Vac 1 HP @ 120 Vac
Housing Rating UL Accepted for Use in Plenum, NEMA 1
Operating Temperature -30 to 140° F
Wires 16", 600V Rated
Power Input 208-277 Vac, 50-60 Hz
Override Switch No
Relay Status LED On - Activated

Description

Low Input/Optoisolated Relay, 20 Amp DPDT, 208-277 Vac Power Input, 5-25 Vac Control Input, Hi/Lo Voltage Separation, NEMA 1 Housing
