Functional Devices-Rib

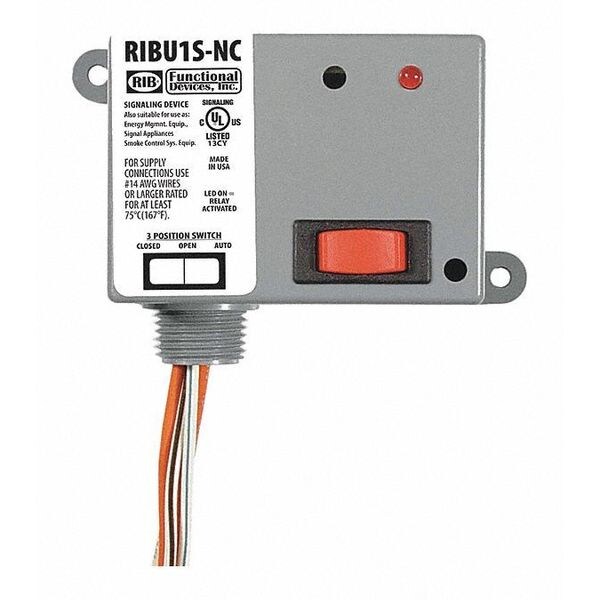

Enclosed Relay, 10A, SPST-N/C

original price: $34.55
29% off
new price: $24.49
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Coil Volts 10 to 30VAC/DC
  • Dimensions 2.30" x 3.20" x 1.80" with .50" NPT nipple
  • Height 1.8
  • Width 3.2
  • Approvals UL Listed, UL916, UL864, C-UL California State Fire Marshal, CE
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Dimensions 2.30" x 3.20" x 1.80" with .50" NPT nipple
Height 1.8
Width 3.2

Details

Coil Volts 10 to 30VAC/DC
Item Enclosed Relay,10A,SPST-N/C,10-30VAC/DC
Approvals UL Listed, UL916, UL864, C-UL California State Fire Marshal, CE
Housing Rating UL Accepted for Use in Plenum, NEMA 1
Humidity Range 5 to 95% (noncondensing)
Wires 16", 600V Rated
Contact Ratings 10 Amp Resistive @ 277 Vac 480 VA Pilot Duty @ 277 Vac 480 VA Ballast @ 277 Vac Not rated for Electronic Ballast 600 Watt Tungsten @ 120 Vac (N/O) 240 Watt Tungsten @ 120 Vac (N/C) 1/3 HP @ 120-240 Vac (N/O) 1/6 HP @ 120-240 Vac (N/C) 1/4 HP @ 277 Vac (N/O) 1/8 HP @ 277 Vac (N/C)
Switch Position Normally Closed
No. of Relays & Contact Type One (1) SPST Continuous Duty Coil
Relay Status LED On - Activated
Operating Temperature -30 to 140° F
Coil Voltage Input 10-30 Vac/dc ; 120 Vac ; 50-60 Hz Drop Out - 2.1 Vac / 2.8 Vdc Pull In - 9 Vac / 10 Vdc
Override Switch Yes
Gold Flash Yes
Coil Current 33 mA @ 10 Vac 35 mA @ 12 Vac 46 mA @ 24 Vac 55 mA @ 30 Vac 28 mA @ 120 Vac 13 mA @ 10 Vdc 15 mA @ 12 Vdc 18 mA @ 24 Vdc 20 mA @ 30 Vdc
Operate Time 20ms
Expected Relay Life 10 million cycles minimum mechanical

Description

Pilot Relay, 10 Amp SPST-N/C + Override, 10-30 Vac/dc/120 Vac Coil, NEMA 1 Housing
