Shop All Current Sensing Relays
Functional Devices-Rib

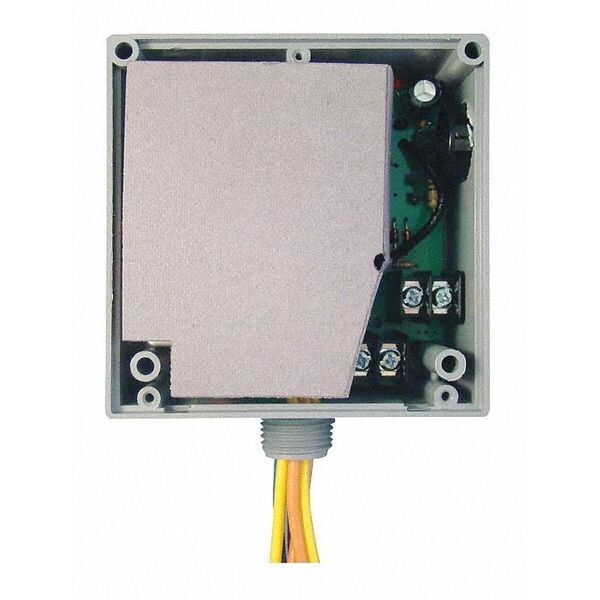

Enclosed Internal Current Switch, Fixed
Mfr # RIBX243PF
Zoro # G3226750
product price: $96.99
/ea
Free Shipping & Returns
$96.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Width 4
- Expected Relay Life 10 million cycles minimum mechanical
- Coil Voltage Input 24 Vac/dc ; 50-60 Hz Drop Out - 3 Vac / 3.8 Vdc Pull In - 20 Vac / 22 Vdc
- Operate Time 20ms
- Dimensions 4.00"H x 4.00"W x 1.81"D with 0.50" NPT nipple
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Functional Devices-Rib
- MFR # RIBX243PF
- Zoro # G3226750
- Country of Origin United States
- Category Current Sensing Relays
Dimensions
Width | 4 |
Dimensions | 4.00"H x 4.00"W x 1.81"D with 0.50" NPT nipple |
Wire Length | 16", 600V Rated |
Details
Item | Fixed Current Switch |
Expected Relay Life | 10 million cycles minimum mechanical |
Coil Voltage Input | 24 Vac/dc ; 50-60 Hz Drop Out - 3 Vac / 3.8 Vdc Pull In - 20 Vac / 22 Vdc |
Operate Time | 20ms |
Override Switch | No |
Sensor Range | .50-20 Amps |
Humidity Range | 5 to 95% (noncondensing) |
Sensor Threshold | Adjustable, .50-20 Amps |
Housing Rating | UL Accepted for Use in Plenum, NEMA 1 |
Approvals | UL Listed, UL916, C-UL, CE |
Relay Status | Red LED On - Activated |
Contact Ratings | 20 Amp Resistive @ 300 Vac, 28 Vdc 20 Amp Ballast @ 277-480 Vac Not rated for Electronic Ballast 15 Amp Resistive @ 600 Vac 770 VA Pilot Duty @ 120 Vac, 1 Phase 1158 VA Pilot Duty @ 240 Vac, 1 Phase 1110 VA Pilot Duty @ 277 Vac, 1 Phase 1640 VA Pilot Duty @ 480 Vac, 1 Phase 1466 VA Pilot Duty @ 240 Vac, 3 Phase 2112 VA Pilot Duty @ 480 Vac, 3 Phase Heavy Pilot Duty @ 600 Vac 7.5 HP @ 480 Vac, 3 Phase 5 HP @ 240 Vac, 3 Phase 3 HP @ 480-600 Vac, 1 Phase 2 HP @ 240-277 Vac, 1 Phase 1 HP @ 120 Vac, 1 Phase |
Coil Current | 210 mA @ 24 Vac 154 mA @ 30 Vdc |
Sensor Type | Internal, with contact status Current sensing on orange wires |
No. of Relays & Contact Type | One (1) 3PST Continuous Duty Coil |
Operating Temperature | -30 to 140° F |
Sensor Contact | Solid State Contact, 30 Vac/dc, .4 Amp Max |
Gold Flash | No |
Description
Current Switch and Relay Combination, 20 Amp 3PST-N/O, 24Vac/dc Coil, Internal Fixed, 0.5-20 Amp, NEMA 1 Housing
