Functional Devices-Rib

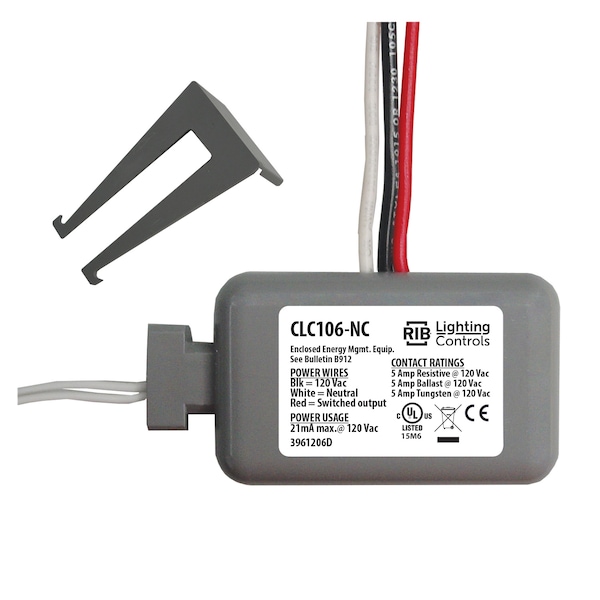

Closet Light Controller Relay, 5 Amp SPST-N/C, 120 Vac Power, Separate
Mfr # CLC106-NC
Zoro # G1958208
product price: $41.29
/ea
$41.29
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Coil Rating 21 mA @ 120 VAC Max
- Color Gray
- Voltage 120 Vac
- Contact Type SPST (NC)
- Housing Rating NEMA 1, Plenum Rated
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Functional Devices-Rib
- MFR # CLC106-NC
- Zoro # G1958208
- Country of Origin United States
- Category Control Relays
Dimensions
Dimensions | 1.1 in H x 1.5 in W x 2.9 in D (2.7 x 3.8 x 7.4 cm) |
Details
Coil Rating | 21 mA @ 120 VAC Max |
Color | Gray |
Voltage | 120 Vac |
Contact Type | SPST (NC) |
Housing Rating | NEMA 1, Plenum Rated |
Indication | LED |
Contact Rating | 5A |
Operating Humidity | 5 to 95% (noncondensing) |
Approvals | CE Approved, UL Listed, C-UL |
Coil Type | Continuous Duty Coil |
Mechanical Life | 10 Million Cycles Minimum |
Operating Temperature | -30 to 140 °F (-34 to 60 °C) |
Frequency | 50/60 Hz |
Description
Closet Light Controller Relay, 5 Amp SPST-N/C, 120 Vac Power, Separated Class 2 Magnetic Door Switch Input, NEMA 1 Housing
