Functional Devices-Rib

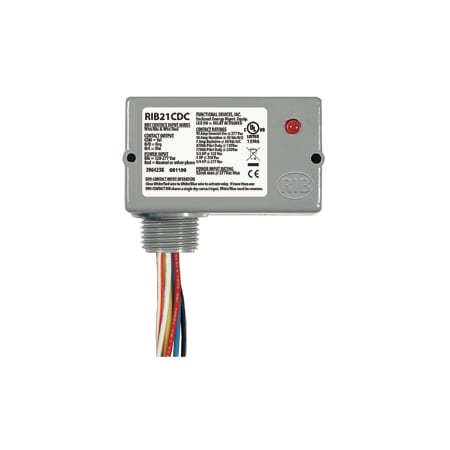

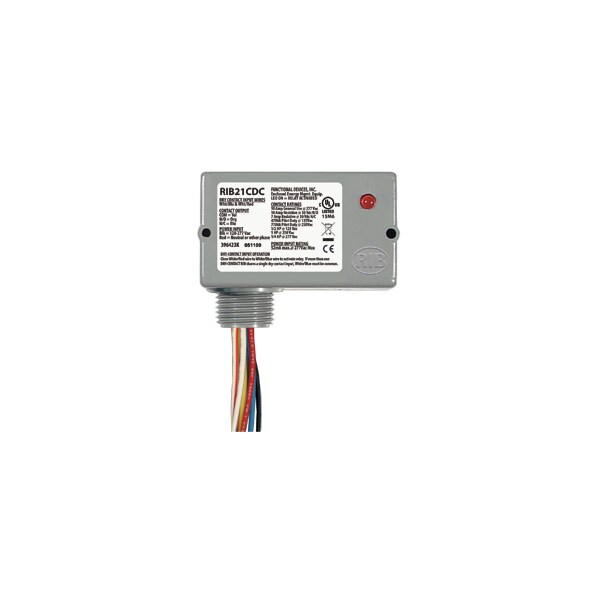

21Cdc Enclosed Pilot

product price: $28.85
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Override Switch No
  • Approvals UL Listed, UL916, C-UL, CE
  • Operate Time 1.8 Seconds
  • Relay Status LED On - Activated
  • Gold Flash No
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Dimensions 1.70"H x 2.80"W x 1.50"D with 0.50" NPT nipple

Details

Override Switch No
Approvals UL Listed, UL916, C-UL, CE
Operate Time 1.8 Seconds
Relay Status LED On - Activated
Gold Flash No
No. of Relays & Contact Type One (1) SPDT Continuous Duty Coil
Humidity Range 5 to 95% (noncondensing)
Housing Rating UL Accepted for Use in Plenum, NEMA 1
Contact Ratings 10 Amp General Use @ 277 Vac 10 Amp Resistive @ 30 Vdc (N/O) 7 Amp Resistive @ 30 Vdc (N/C) 1/2 HP @ 125 Vac 1 HP @ 250 Vac 1/4 HP @ 277 Vac 470 VA Pilot Duty @ 125 Vac 770 VA Pilot Duty @ 250 Vac
Wires 16", 600V Rated
Expected Relay Life 10 million cycles minimum mechanical
Item Dry Contact Relay
Power Input 50 mA @ 240 Vac Max.
Operating Temperature -30 to 140° F

Description

21Cdc Enclosed Pilot Relay,Class2 Dry Contact Input,120-277Vac Pwr, 10A Spdt
