  9. Drum Pump Tube, Stainless Steel, 39in Long, Motor 120V, 60Hz, 1ph 800 Watts Power
Shop All Electric Drum Pumps
Flux Pumps

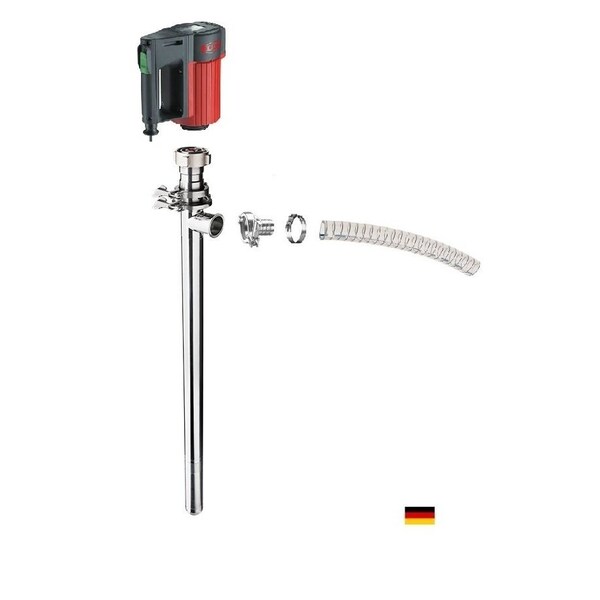

Drum Pump Tube, Stainless Steel, 39in Long, Motor 120V, 60Hz, 1ph 800 Watts Power

product price: $5,169.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • For Use With Chemical Service, High Viscosity Products
  • Includes Pump Tube, 120V, 60Hz, 1ph Motor, Hose
  • Motor Type Electric
  • Max. Flow GPM 12 gpm
  • Power Cord Length (Ft.) 16 ft long with plug
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Power Cord Length (Ft.) 16 ft long with plug
Outlet Size 2 inch tri clamp with adapter to 1.5 inch hose barb
Hose Length 39 inch (1000 mm)
Outside Diameter 2.01 inch (53 mm)
For Container Size 55 gal drums or smaller

Details

For Use With Chemical Service, High Viscosity Products
Includes Pump Tube, 120V, 60Hz, 1ph Motor, Hose
Motor Type Electric
Max. Flow GPM 12 gpm
Amps 7.5
Motor Enclosure Polypropylene
Max. Viscosity 500 - 30,000 cps
Max. Pressure 116 psi
Material 316 S.S.
Motor Power 800 Watts
Weight 27 Lbs

Description

F570-1000-FKMo-FKM-SP-TS-R52-PTFE-G16, 39in pump tube with F457 motor 120V, 60Hz, 1ph, 800 Watts power, 6 ft PVC hose, hose clip. For high viscosity applications. For industrial applications. Not for sanitary / food applications. FLUX F570-1000-FKMo-FKM-SP-TS-R52-PTFE-G16, 39in drum pump for 55 gallon drums in S.S./FKM construction. Includes F457 motor 120V, 60Hz, 1ph, 800 Watts power, adapter for pump discharge from 2 inch tri clamp to 1.5 inch hose barb, 6 ft of PVC hose, hose clip. Details: 1000 mm 39in tube length for use in 55 gal drums or smaller containers, 53 mm 2.1in tube OD, progressive cavity pump, mechanical seal, PTFE stator, Max flow: 12 GPM*, Max pressure: 116 psi*, Viscosity 500 - 30,000 cPs Max, Temp range: 32 Degrees F - 212 Degrees F. Max temp 150 Degrees F when used with PVC hose.. *As tested with water at 68 Degrees F at pump outlet with full, open discharge +/- 10%; Max pressure measured with closed outlet. Performance will vary based on type of liquids or products being transferred., Hose. For High Viscosity Products
