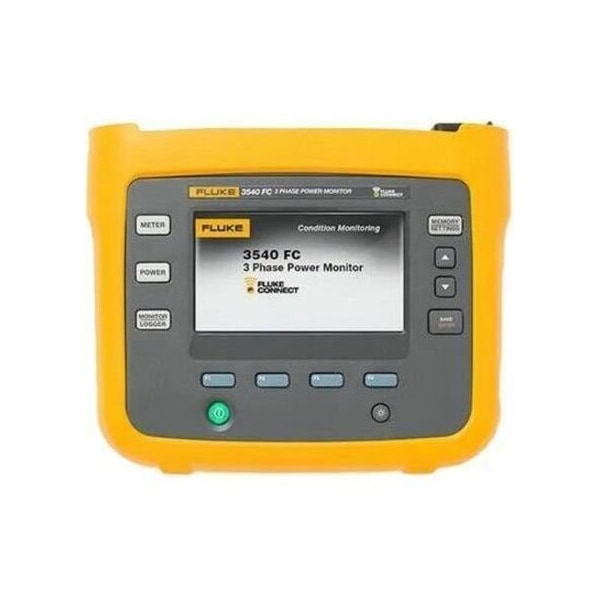

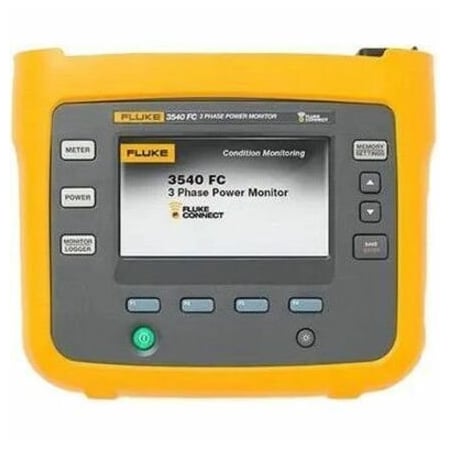

Power Monitor And Condition Monitoring Kit, 100 To 500 Vac, 5060 Hz, 50 Va, Power Factor 08, 43

Mfr # FLUKE-3540 FC KIT
Zoro # G308174127

$4,696.99

Free Shipping & Returns

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Promotion Restriction Not eligible for promotion
Voltage Full cycle RMS (20 ms at 50 Hz, 16.7 ms at 60 HZ)
IEC 61010-1 IEC mains input: Overvoltage Category II, Pollution Degree 2 || Voltage terminals: Overvoltage Category IV, Pollution Degree 2
Bandwidth (-3 dB) 42.5 Hz to 3.5 kHz
Frequency range 2412 MHz to 2462 MHz

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Fluke
MFR # FLUKE-3540 FC KIT
Zoro # G308174127
UPC #
95969863025
Country of Origin Romania
Category Uninterruptible Power Supplies (UPS) Accessories

Dimensions

Bandwidth (-3 dB)	42.5 Hz to 3.5 kHz
Dimensions (WxHxD 3540 FC with power supply attached	19.8 cmx 16.7 x 9 cm (7.8 x 6.6 x 4.0 in)
Memory size	Typical 1 offline logging session of 1 week with 1 second intervals. The number of possible logging sessions and logging period depends on user requirements.
Bandwidth	42.5 Hz to 3.5 kHz
Dimensions (WxHxD 3540 FC	19.8 x 16.7 x 5.5 cm (7.8 x 6.6 x 2.2 in)
Dimensions (WxHxD Detachable power supply	13.0 x 13.0 x 4.5 cm (5.1 x 5.1 x 1.8 in)

Details

Promotion Restriction	Not eligible for promotion
Voltage	Full cycle RMS (20 ms at 50 Hz, 16.7 ms at 60 HZ)
IEC 61010-1	IEC mains input: Overvoltage Category II, Pollution Degree 2 \|\| Voltage terminals: Overvoltage Category IV, Pollution Degree 2
Frequency range	2412 MHz to 2462 MHz
Input impedance	10 MÎ© each phase to neutral
IP rating	IEC 60529:IP50, in connected condition with protection caps in place
Storage altitude	12,000 m (39,000 ft)
Sampling frequency	10.24 kHz at 50/60Hz, synchronized to mains frequency
International	IEC 61326-1: Industrial
Operating altitude	2000 m (6,500 ft) (up to 4,000 m derate to 1000 V CAT II/600 V CAT III/300 V CAT IV)
Output power	<100 mW
Battery power	Li-ion 3.7 V, 9.25 Wh, customer-replaceable
Averaging interval	1 s
Tamper protection	Kensington lock
Input signal frequency	Mains 50/60 Hz (42.5 to 69 Hz)
Power consumption	Maximum 50 VA (max. 15 VA when powered using IEC 60320 input)
Resolution	16-bit synchronous sampling
Power	200 ms
Mains frequency	50/60 Hz±15 %
Vibration	MIL-T-28800E, Type 3, Class III, Style B
Standby power	<0.3 W only when powered using IEC 60320 input
Supported modes	Direct connection and connection to infrastructure
Scaling	1:1, variable, 1:1 and variable
Current sensor output voltage Clamp	500 mVrms / 50 mVrms; CF 2.8
Operating humidity	<10°C (<50°F) non condensing \|\| +10°C to +30°C (+50°F to +86°F) â‰¤95 % \|\| +30°C to +40°C (+86°F to +104°F) â‰¤75 % \|\| +40°C to +45°C (+104°F to +113°F) â‰¤45 %
Voltage range	Nominal 100 V to 500 V (85 V min to 550 V max) using safety plug input
Efficiency	â‰¥68.2 % (in accordance with energy efficiency regulations)
Data storage	Internal flash memory (not user replaceable)
Maximum input voltage	1000 Vrms (1700 Vpk) phase to neutral
Number of inputs	3, mode selected automatically for attached sensor, 4 (3 phases and neutral)
Wiring configurations	1-Φ, 1-Φ IT, Split-phase, 3-Φ wye, 3-Φ wye IT, 3-Φ wye balanced, 3-Φ delta, 3-Φ Aron/Blondel (2-element delta), 3-Φ delta open leg, 3-Φ high leg delta, 3-Φ delta balanced. Currents only (load studies)
Operating Temperature	0°C to +45°C (+32°F to +113°F)
On-battery runtime	Up to 4 hr (up to 5.5 hr in energy saving mode)
Storage temperature	<20°C to +60°C (-4°C to +140°F), with battery: -20°C to +50°C (-4°F to +122°F)
Measured parameters	Voltage, current, frequency, THD V, THD A, power, power factor, fundamental power, DPF
Charging time	<6 hr
Color LCD display	4.3-inch active matrix color TFT, 480 pixels x 272 pixels, resistive touch panel
Mains power	Nominal 100 V to 240 V (85 V min to 265 V max) using IEC 60320 C7 input
USB-A	Firmware updates, max. supply current: 120 mA
Total harmonic distortion	THD for voltage and current is calculated on 25 harmonics
Current sensor output voltage Rogowski coil	150 mVrms/15 mVrms at 50 Hz, 180 mVrms/18 mVrms at 60 Hz; CF 4; all at nominal probe range
Current	Half cycle RMS (10 ms at 50 Hz, 8.3 ms at 60 Hz)
USA (FCC)	47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
Security	WPA2-AES with pre-shared key

Description

Power Monitor and Condition Monitoring Kit, 100 to 500 VAC, 5060 Hz, 50 VA, Power Factor 08, 43 in LCD, 3 Phase, LiIon Battery Type, 2500 mAh Battery, IP50, 66 in H x 78 in W x 4 in D pFluke ppThe 3540 FC 3phase power monitor and condition monitoring kit is a combination of the 3540 FC 3phase power monitor and Fluke Connect condition monitoring FCCM software The 3540 FC 3phase power monitor is a compact device used to monitor key electrical parameters at 3phase machinery and seamlessly stream data to the Fluke connect cloud Once in the cloud, the software allows maintenance teams to remotely view data anytime, anywhere Users can graph asset data to discover measurement trends and send alarms when values are outside user set thresholdsp
