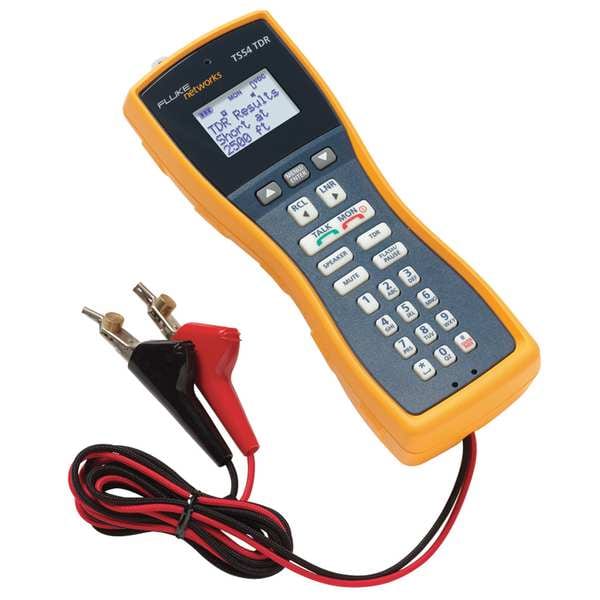

Test Set, TDR, Toner, Data Indicator

Mfr # TS54-A-09-TDR
Zoro # G4712985

$1,027.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Promotion Restriction Not eligible for promotion
Application VDV
Display Backlit LCD
For Use With Telephone Lines
Features Caller ID with Call Waiting, Data Lockout Protection, DSL/POTS Filtering, Last Number Redial, Low Battery Indication, Mute Function, Polarity Function, Speed Dial Memory, Two-Way Speakerphone

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Fluke Networks
MFR # TS54-A-09-TDR
Zoro # G4712985
UPC #
754082081654
Country of Origin Singapore
Category Test Equipment

Dimensions

Depth	2.6"
Height	8.3"
Width	3.2"
Battery Size Supported	9V
Battery Size	9V

Details

Promotion Restriction	Not eligible for promotion
Item	Test Set
Application	VDV
Display	Backlit LCD
For Use With	Telephone Lines
Features	Caller ID with Call Waiting, Data Lockout Protection, DSL/POTS Filtering, Last Number Redial, Low Battery Indication, Mute Function, Polarity Function, Speed Dial Memory, Two-Way Speakerphone
Includes	Caller-ID w/ Call Waiting,2-way Speakerphone
Connector Type	ABN/PP
Waterproof	Yes
Data Safe Monitor	Yes
Dialing Method	Pulse, Tone
Line Polarity Indicator	Yes
Standards	ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 No. 61010-1-04, EMC EN61326-1, IEC/EN 61010-1, UL 61010-1 (2004)
Tone Level	-3 dBm combined (typical)
PBX Pause Duration	User programmable; default of 4 seconds
Altitude	To 10,000 ft. (3,000 m) max
LCD function	-13Â°F to 140Â°F (-25Â°C to 60Â°C)
High versus Low Tone Difference	2 dB Â± 2 dB
Maximum transient voltage	1500 V
Interdigit Interval	>300 ms
Off-Hook	150 â„¦ nominal, 600 â„¦ nominal; 300 Hz to 3400 Hz
Range	0 mA to 100 mA, 3,000 feet (914 m), 4 V dc to 140 V dc
Water Resistance	The test set is rain and moisture resistant and IP64 rated
Accuracy	Â±2 m Â±5 %
Tone Frequency Error	Â±1. 5 % maximum
Battery type	9 V alkaline battery
Headset impedance	32 â„¦
Break/Make Ratio	60/40
Relative Humidity	45% to 50Â°C \|\| 95% to 30Â°C \|\| 30% to 60Â°C \|\| 75% to 40Â°C
Current Range (Off-Hook)	10 mA to 100 mA
Handset speech and dialing functions	-22Â°F to 140 Â°F (-30Â°C to 60Â°C)
Pulsing Rate	10 pps Â±1 pps
On-Hook	>120 kâ„¦ 300 Hz to 3400 Hz, >3 M â„¦
Automatic shut-off duration	User programmable; default of 2 minutes
Resistance During Break	>100 kâ„¦
Frequencies	Steady tone: 950 Hz
Storage	-22Â°F to 150Â°F (-30Â°C to 66Â°C)
Memory Capacity	9 speed dial memoriesof 23 digits, plus one last number redial memory
Hook Flash Duration	User programmable; default of 500 ms
Measurement	8. 3 in x 3. 2 in x 2. 6 in (211 mm x 81 mm x 66 mm) (without belt)
Battery Chemistry	Alkaline
Status Indicators	Data Indication, Voltage Indication, Current (mA) Indication
Display Screen Type	LCD with Backlight
Product Series	TS54
Input Voltage	9 V DC
Device Function	Current Measurement, Voltage Monitor, Cable Length Testing, Voice Signal Testing, Video Signal Testing
Product Name	Test Set + TDR, ABN with Piercing Pin
Certifications & Standards	ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 No 61010-1-04, UL 61010-1 (2004), IEC 61010-1:2010, EMC EN61326-1
Minimum Operating Temperature	-22 Degrees F
Includes Batteries	No
Testing Functions	Line Polarity Indication, Milliamp Detection
Display Type	Digital
Adapters Included	ABN
CAT Safety Rating	CAT I
IP Rating	IP64
Number of Digits	23
Maximum Operating Temperature	140 Degrees F
Backlit Digital Display	Yes
Alert Type	Light, Sound
Maximum Operating Humidity	95 %

Description

Test Set, Adapters Included ABN, Connector Type ABN/PP, Data Safe Monitor Yes, Dialing Method Pulse, Tone, Features Caller ID with Call Waiting, Data Lockout Protection, DSL/POTS Filtering, Last Number Redial, Low Battery Indication, Mute Function, Polarity Function, Speed Dial Memory, Two-Way Speakerphone, IP Rating IP64, Number of Digits 23, Testing Functions Line Polarity Indication, Milliamp Detection, Alert Type Light, Sound, Backlit Digital Display Yes, Battery Chemistry Alkaline
