Fluke

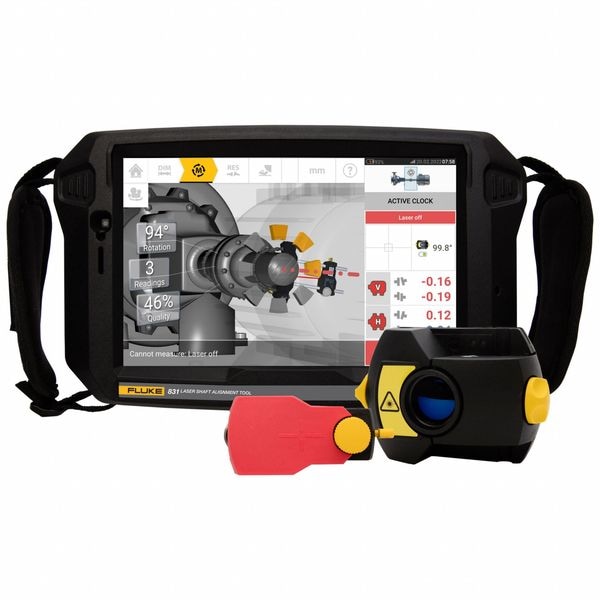

Laser Alignment Tool, LED, Red Beam

product price: $12,270.99
/ea
Free Shipping & Returns
Not eligible for select promotions
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Standards CE, CFR 1040.10 and 1040.11, IEC 60825-1:2014
  • Indicator LED
  • Power Source Lithium-Ion Rechargeable Battery
  • Accuracy Greater Than 99%
  • Laser Class 2
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Compatible Shaft Diameter - Maximum 8 in
Indicator Post Diameter 2 in
Indicator Post Length 4 1/4 in

Details

Promotion Restriction Not eligible for promotion
Item Laser Alignment Tool
Standards CE, CFR 1040.10 and 1040.11, IEC 60825-1:2014
Indicator LED
Power Source Lithium-Ion Rechargeable Battery
Accuracy Greater Than 99%
Laser Class 2
Range 98 ft
Product Type Laser Shaft Alignment Tool
Beam Color Red
Operating Temp. Range 14 Degrees to 122 Degrees F (-10 Degrees to 50 Degrees C)
Includes (2) Chain Type Mounting Bracket with 150 mm Support Posts, (2) Power Adapter, (4) 300 mm Support Post, Carrying Case, Lens Cleaning Cloth, Reflector Prism, Sensor Laser, Tape Measure, USB Drive, USB Drive Cable, USB PC Cable, USB Sensor Cable
Operating Temperature - Minimum -4 Degrees F
Number of Indicator Posts 1
Number of Clamps 2
Indicator Type LED
Indicator Post Material Stainless Steel
Operating Temperature - Maximum 140 Degrees F
Alignment Distance - Maximum 98 ft

Description

Laser Alignment Tool, Alignment Distance - Maximum 98 ft, Beam Color Red, Compatible Shaft Diameter - Maximum 8 in, Dial Reading Not Applicable, Includes (2) Chain Type Mounting Bracket with 150 mm Support Posts, (2) Power Adapter, (4) 300 mm Support Post, Carrying Case, Lens Cleaning Cloth, Reflector Prism, Sensor Laser, Tape Measure, USB Drive, USB Drive Cable, USB PC Cable, USB Sensor Cable, Indicator Post Diameter 2 in, Indicator Post Length 4 1/4 in, Indicator Post Material Stainless Steel
