Clamp Meter, Digital, Clamp On, 1.3"Jaw Cap

Mfr # Fluke-393FC
Zoro # G902203438

$810.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Digital/Analog Digital
Max. AC Amps 1,000 A
Clamp Meter Jaw Style Clamp On
Max. DC Volts 1,500 V
Max. Ohms 600 ohm

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Fluke
MFR # Fluke-393FC
Zoro # G902203438
Country of Origin China
Category Clamp On Power Meters

Dimensions

Manufacturers Warranty Length	3 yr
Max. Conductor Size	34 mm
Battery Size	AA
Maximum Conductor Size	1.33 in (34mm)

Details

Promotion Restriction	Not eligible for promotion
Item	Digital Clamp Meter
Digital/Analog	Digital
Max. AC Amps	1,000 A
Clamp Meter Jaw Style	Clamp On
Max. DC Volts	1,500 V
Max. Ohms	600 ohm
Jaw Capacity	1.3 in (33 mm)
Safety Rating	CAT III 1500V, CAT IV 600V
Display	Backlit LCD
Jaw Opening	1.3 in
Max. DC Amps	1,000 A
Max. AC Volts	1,000 V
Calibration Frequency	5 to 500 Hz
Audible Continuity	Yes

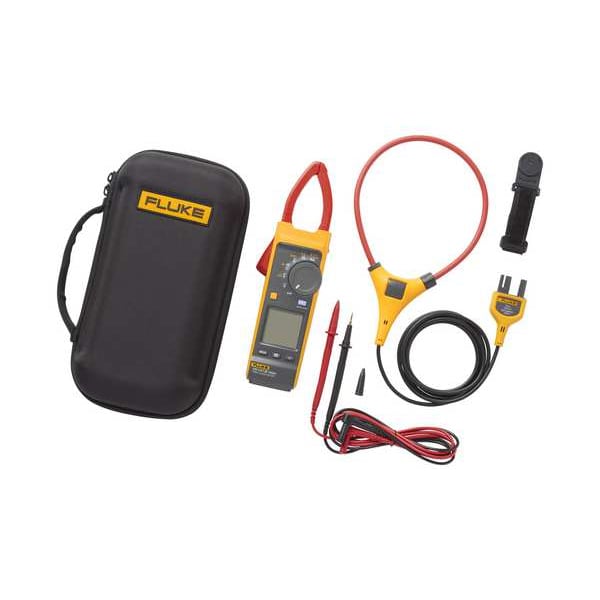

Includes	Carrying Case, CAT III 1500V Rated, Fluke 393 FC CAT III 1500 V True-RMS Clamp Meter with iFlex, iFlex 18 in Flexible Current Probe, Right Angle Plugs with Safety Caps, Test Leads, TPAK Magnetic Hanging Strap
Capacitance	1,000 uF
Memory	Max/Min
Frequency Counter	5 Hz to 500 Hz
Inrush	Yes
Non-Contact Voltage Detector	Yes
AC Response	TRMS
Auto Ranging	Yes
Data Hold	Yes
Operating Temp.	18 Degrees to 28 Degrees C
Peak Hold	Yes
Auto Power Off	Yes
Data Logging	Yes
Special Features	Designed for Technicians Who Work in High Voltage DC Environment: Solar Arrays, Wind Power, Electric Railways, Data Centers Battery Banks for Uninterruptible Power Supplies
Diode Test	No
Thermometer Type	Type K Thermocouple
Standards	IEC/EN61010-031
Calibration Certificate	Not Included
AC Current Accuracy	+/-2 % + 5 Digits
Battery Type	(2) AA Alkaline
Intrinsically Safe	No
Display Type	Backlit LCD
Dustproof	No
AC Voltage Measurement Resolution	0.1 V
DC Voltage Measurement Resolution	0.1 V
Instrument Safety Rating	CAT III 1500V; CAT IV 600V
Basic DC Voltage Accuracy	1 % RD + 5 digits
Capacitance Measurement Resolution	100 uF
Maximum DC Current Measurement	1,000 A
Basic AC Current Accuracy	Jaw: 2 % + 5 digits (10 Hz to 100 Hz) 2.5 % + 5 digits (100 Hz to 500 Hz)Flexible Probe: 3 % RD + 5 digits (10 Hz to 500 Hz)
DC Current Measurement Resolution	0.1 A
AC Response Calculation	TRMS
Waterproof	No
Maximum AC Voltage Measurement	1,000 V
Current Leakage Testing	No
Frequency Measurement Accuracy	0.5 % RD + 5 digits
Basic DC Current Accuracy	2 % RD + 5 digits
Maximum Resistance Measurement	600 ohm
Parameters Measured	AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature (K)
Maximum Operating Temperature	28 Degrees F
Maximum DC Voltage Measurement	1,500 V
Bluetooth Compatible	Yes
IP Rating	IP54
Maximum Capacitance Measurement	1,000 uF
Inrush Current Measurable	Yes
AC Current Measurement Resolution	0.1 A
Minimum Operating Temperature	18 Degrees F
Features	Bluetooth-Compatible, Data Logging
Thermal Imaging	No
Jaw Style	Clamp-Jaw
Maximum Storage Temperature	140 Degrees F
Resistance Measurement Resolution	0.1 ohm
Basic AC Voltage Accuracy	1 % RD + 5 digits (20 Hz to 500 Hz)
Resistance Measurement Accuracy	1 % RD + 5 digits
Removable Screen	No
Calibration Certificate Included	No
Capacitance Measurement Accuracy	1 % RD + 5 digits
Maximum AC Current Measurement	1,000 A
Frequency Measurement Resolution	0.1 Hz

Description

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT III 1500V, CAT IV 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 1,000 A, Maximum AC Voltage Measurement 1,000 V, Maximum DC Current Measurement 1,000 A, Maximum DC Voltage Measurement 1,500 V, Current Leakage Testing No, IP Rating IP54, Parameters Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature (K), Intrinsically Safe No, Dustproof No, Waterproof No
