Flowserve

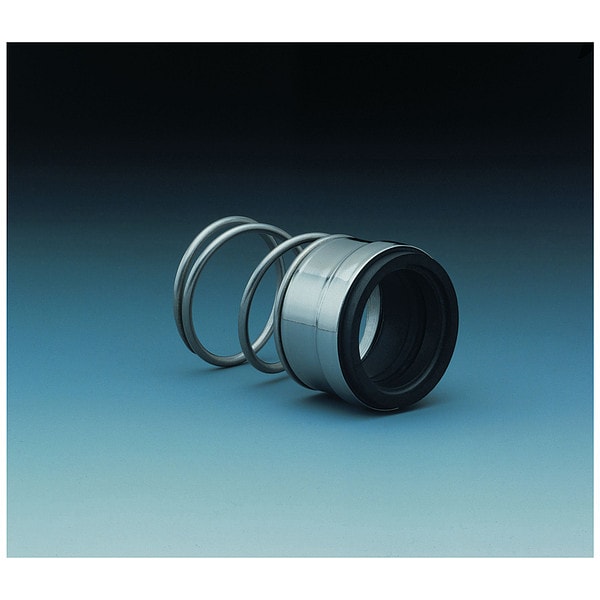

Mechanical Seal, C Ring, Single Spring

product price: $98.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Shaft Size (In.) 1 3/4 in
  • Nominal Working Length (In.) 2 in
  • Seat Bore 2.5 in
  • Seat Thickness 0.5 in
  • Seal Material 316 Stainless Steel, Buna, Carbon, Ceramic
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Shaft Size (In.) 1 3/4 in
Nominal Working Length (In.) 2 in
For Shaft Diameter 1 3/4 in
Working Length 2 in

Details

Seat Bore 2.5 in
Seat Thickness 0.5 in
Seal Material 316 Stainless Steel, Buna, Carbon, Ceramic
Standard Industry Seal Number 205
Includes Cup Mounted
Item Mechanical Seal
Shut Off Pressure (Maximum) 150 psi
Compatible with Pump Type Constant Pressure Booster Pumps, Straight Centrifugal
Spring Type Single Spring
Spring Material 316
Ring Material Carbon
Shaft Seal Type Mechanical Shaft Seal
Compatible with Media Type Detergents, Diesel, Non-Corrosive Chemicals, Oil, Water
Seal Type Designation 51
Gasket Material Buna

Description

Mechanical Seal, For Shaft Diameter 1 3/4 in, Compatible with Pump Type Constant Pressure Booster Pumps, Straight Centrifugal, Gasket Material Buna, Compatible with Media Type Detergents, Diesel, Non-Corrosive Chemicals, Oil, Water, Includes Cup Mounted, Ring Material Carbon, Seal Type Designation 51, Shaft Seal Type Mechanical Shaft Seal, Shut Off Pressure (Maximum) 150 psi, Spring Material 316, Spring Type Single Spring, Working Length 2 in
