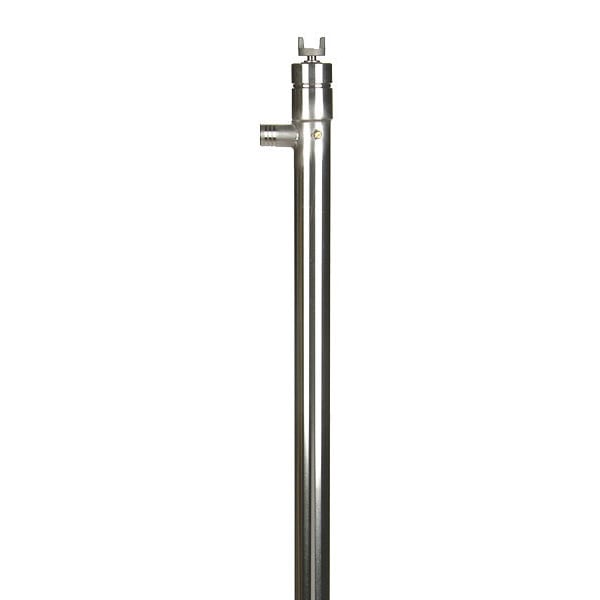

Drum Pump Tube, Suction Tube 48 L

Mfr # DTTS009
Zoro # G1456357

$605.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

For Use With TT
Outlet Size 1 in Barb
Height 48"
Wetted Materials Stainless Steel, PTFE
Agency Compliance No

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Finish Thompson
MFR # DTTS009
Zoro # G1456357
Country of Origin United States
Category Fuel Transfer Accessories

Dimensions

Outlet Size	1 in Barb
Height	48"
Discharge Tube Outlet OD Size	1-7/16"
Discharge Tube Outlet ID Size	1"
Suction Tube Length	48 in
Overall Length	50 in
For Container Size	55 gal, 275 gal

Details

Item	Drum Pump Tube
For Use With	TT
Wetted Materials	Stainless Steel, PTFE
Agency Compliance	No
Max. Viscosity	2000 CPS
Seal Material	PTFE
Self-Priming	Yes
Adapter Material	Polypropylene
Suction Tube Type	Constant
For Media Type	Acetic Acid, Chromic Acid, Citric Acid, Formic Acid, Nitric Acid, Phosphoric Acid (40% Solution), Ketones, Ethanol, Isopropanol, Methanol, Antifreeze, Ethylene Glycol, Glycerin, Calcium Chloride, Sodium Bicarbonate, Cyclohexane, Gasoline, Heptane, Hexane, Kerosene, Stoddard Solvent, Diesel Fuel, Hydraulic Oil, Ethyl Acetate, Biodiesel, Formaldehyde, Ammonium Hydroxide, Hydrazine, Sodium Hydroxide, Potassium Hydroxide (50%), Lacquer Thinners, Toluene, Xylene, Water, Sodium Bisulfate, Sodium Bisulfite, Trichlorethylene, DEF
Runs Dry	No
Discharge Tube Outlet OD	1 7/16 in
Series	TT
Suction Tube ID	1 1/2 in
Diesel Exhaust Fluid Compatible	Yes
Min. Fluid Temp.	-20 Degrees F
Max. Head	70 ft
Suction Tube Material	316 Stainless Steel
Food Grade	No
Max. Fluid Temp.	150 Degrees F
Max. Flow Rate	16 gpm
Not Recommended Chemicals	Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrochloric/Muriatic Acid (100%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Sulfuric Acid (to 10%), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sodium Hypochlorite/Bleach (to 20%)
Max. Head Pressure	30.3 psi
For Container Type	Drum, Tote
Discharge Connection Type	Hose Barb
Discharge Tube Outlet ID	1 in
Compatible Chemicals	Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Chromic Acid 5%, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 50%, Citric Acid 50%, Formic Acid, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Phosphoric Acid (40% Solution), Acetone, Methyl Ethyl Ketone (MEK), Ethyl (Ethanol), Isopropyl (Isopropanol), Methyl (Methanol), Antifreeze (Coolant), Ethylene Glycol, Glycerin, Calcium Chloride, Sodium Bicarbonate (10%), Cyclohexane, Gasoline, Heptane, Hexane, Kerosene, Stoddard Solvent (Mineral Spirits), Diesel Fuel, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Ethyl Acetate, Biodiesel, Formaldehyde 40%, Formaldehyde, Ammonium Hydroxide, Hydrazine, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Potassium Hydroxide (50%), Lacquer Thinners, Toluene, Xylene, Fresh Water, Salt Water, Deionized Water, Sodium Bisulfate, Sodium Bisulfite, Trichlorethylene (50%), DEF, E85, Anhydrous Ammonia, Ammonia (Liquids), Automatic Transmission Fluid, Brake Fluid, Naphtha, Paint Thinner, Turpentine, Windshield Washer Fluid
Suction Tube OD	1 3/16 in
Gear Lube	NT
Grease	NT

Description

Drum Pump Tube, Suction Tube Length 48 in, Pump Package Type Drum Pump Tube, Suction Tube Material 316 Stainless Steel, Suction Tube ID 1 1/2 in, Suction Tube OD 1 3/16 in, Discharge Tube Outlet ID 1 in, Discharge Tube Outlet OD 1 7/16 in, Discharge Connection Type Hose Barb, Overall Length 50 in, For Container Size 55 gal, 275 gal, For Container Type Drum, Tote, Max. Flow Rate 16 gpm, Max. Viscosity 2000 CPS, Min. Fluid Temp. -20 Degrees F, Max. Fluid Temp. 150 Degrees F, Max. Head 70 ft
